R222252001W

Active

Radiall USA, Inc.

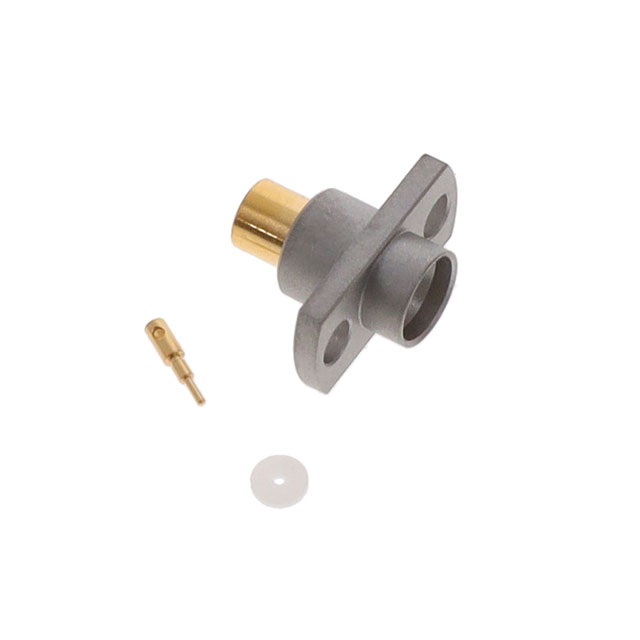

SMP / 2 HOLE FLANGE MALE JACK FU

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMP / 2 HOLE FLANGE MALE JACK FU

Technical Specifications

Parameters and characteristics for this part

Specification	R222252001W

Body Finish	Gold
Body Material	Brass, Stainless Steel
Cable Group	RG-405 (.085" Semi Rigid)
Center Contact Material	Bronze
Center Contact Plating	Gold
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Features	Full Detent
Frequency - Max [Max]	40 GHz
Housing Color	Gold, Silver
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	335 V

Part	Features	Fastening Type	Mounting Feature	Frequency - Max [Max]	Cable Group	Center Contact Plating	Impedance	Housing Color	Center Contact Material	Body Finish	Dielectric Material	Shield Termination	Number of Ports	Mating Cycles	Body Material	Voltage Rating	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Mounting Type
Radiall USA, Inc. R222252301W	Limited Detent	Snap-On	Flange	40 GHz	RG-405 (.085" Semi Rigid)	Gold	50 Ohms	Gold Silver	Beryllium Copper	Gold	Polytetrafluoroethylene (PTFE)	Solder	1	500	Brass Stainless Steel	335 V	Jack Male Pin	-65 ░C	165 °C	Solder
Radiall USA, Inc. R222252022	Full Detent	Snap-On	Flange	40 GHz	RG-405 (.085" Semi Rigid)	Gold	50 Ohms	Gold Silver	Beryllium Copper	Gold	Polytetrafluoroethylene (PTFE)	Solder	1		Brass Stainless Steel	335 V	Jack Male Pin	-65 ░C	165 °C	Solder
Radiall USA, Inc. R222252001	Full Detent	Snap-On		40 GHz	RG-405 (.085" Semi Rigid)	Gold	50 Ohms	Gold Silver	Bronze	Gold	Polytetrafluoroethylene (PTFE)	Solder	1		Brass Stainless Steel	335 V	Jack Male Pin	-65 ░C	165 °C	Solder	Free Hanging (In-Line)
Radiall USA, Inc. R222252301	Limited Detent	Snap-On	Flange	40 GHz	RG-405 (.085" Semi Rigid)	Gold	50 Ohms	Gold Silver	Beryllium Copper	Gold	Polytetrafluoroethylene (PTFE)	Solder	1	500	Brass Stainless Steel	335 V	Jack Male Pin	-65 ░C	165 °C	Solder
Radiall USA, Inc. R222252001W	Full Detent	Snap-On		40 GHz	RG-405 (.085" Semi Rigid)	Gold	50 Ohms	Gold Silver	Bronze	Gold	Polytetrafluoroethylene (PTFE)	Solder	1		Brass Stainless Steel	335 V	Jack Male Pin	-65 ░C	165 °C	Solder	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMP Connector Jack, Male Pin 50 Ohms Free Hanging (In-Line) Solder
