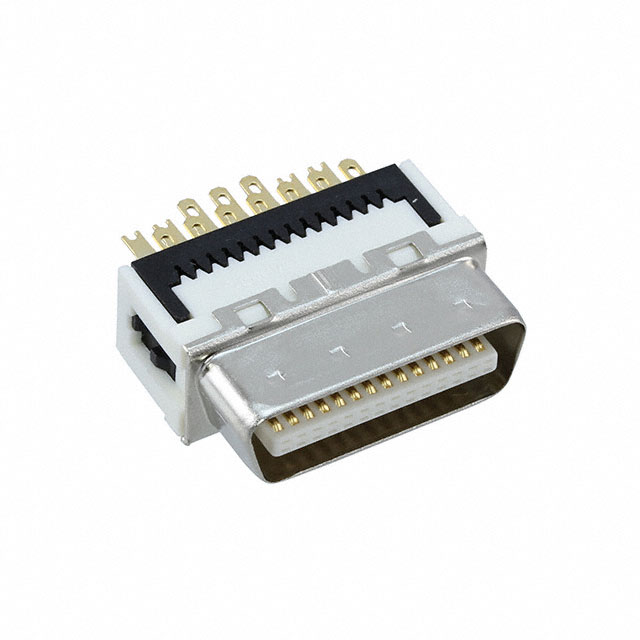

DX40-28P(55)

Active

Hirose Electric USA, Inc.

HIROSE ORIGINAL 1.27MM PITCH HIGH-DENSITY I/O CONNECTORS

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

HIROSE ORIGINAL 1.27MM PITCH HIGH-DENSITY I/O CONNECTORS

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish	Mounting Type	Connector Style	Type	Number of Rows	Number of Positions	Connector Type	Termination
Hirose Electric USA, Inc. DX40M-20P	Gold	Free Hanging (In-Line)	Center Strip Contacts	Miniature High Density (HD)	2	20	Plug	Solder Eyelet(s)
Hirose Electric USA, Inc. DX40-36P(55)	Gold	Free Hanging (In-Line)	Center Strip Contacts	Miniature High Density (HD)	2	36	Plug	Solder Eyelet(s)
Hirose Electric USA, Inc. DX40-80P(55)	Gold	Free Hanging (In-Line)	Center Strip Contacts	Miniature High Density (HD)	2	80	Plug	Solder Eyelet(s)
Hirose Electric USA, Inc. DX40-100P(55)	Gold	Free Hanging (In-Line)	Center Strip Contacts	Miniature High Density (HD)	2	100	Plug	Solder Eyelet(s)
Hirose Electric USA, Inc. DX40-20P(55)	Gold	Free Hanging (In-Line)	Center Strip Contacts	Miniature High Density (HD)	2	20	Plug	Solder Eyelet(s)
Hirose Electric USA, Inc. DX40M-36P	Gold	Free Hanging (In-Line)	Center Strip Contacts	Miniature High Density (HD)	2	36	Plug	Solder Eyelet(s)
Hirose Electric USA, Inc. DX40-68P(55)	Gold	Free Hanging (In-Line)	Center Strip Contacts	Miniature High Density (HD)	2	68	Plug	Solder Eyelet(s)
Hirose Electric USA, Inc. DX40-28P(55)	Gold	Free Hanging (In-Line)	Center Strip Contacts	Miniature High Density (HD)	2	28	Plug	Solder Eyelet(s)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

28 Position Plug Connector Miniature High Density (HD) Free Hanging (In-Line) Solder Eyelet(s)

Technical documentation and resources

No documents available
