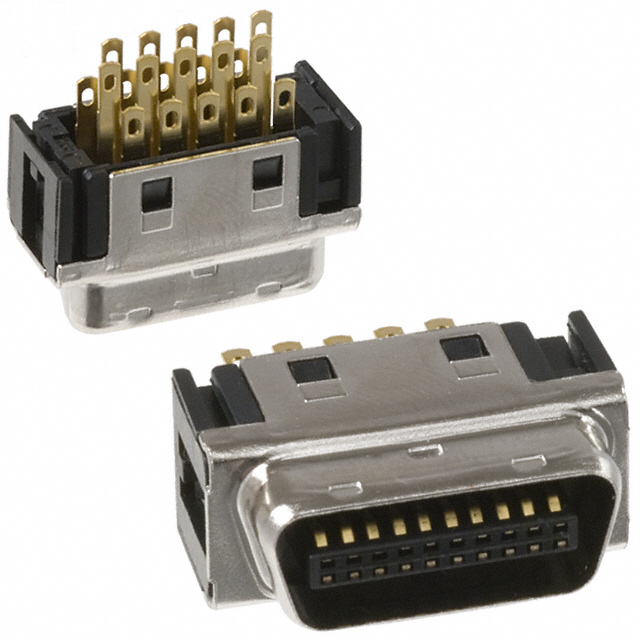

DX40M-20P
ActiveHirose Electric USA, Inc.
CONN MIN HD PLG 20P STR SLD EYEL
Deep-Dive with AI
Search across all available documentation for this part.
DX40M-20P
ActiveHirose Electric USA, Inc.
CONN MIN HD PLG 20P STR SLD EYEL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DX40M-20P |
|---|---|
| Connector Style | Center Strip Contacts |
| Connector Type | Plug |
| Contact Finish | Gold |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Termination | Solder Eyelet(s) |
| Type | Miniature High Density (HD) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.62 | |
| 10 | $ 10.30 | |||
| 25 | $ 9.91 | |||
| 50 | $ 9.51 | |||
| 105 | $ 8.98 | |||
| 315 | $ 8.19 | |||
| 525 | $ 7.66 | |||
| 1050 | $ 7.03 | |||
Description
General part information
DX40 Series
20 Position Plug Connector Miniature High Density (HD) Free Hanging (In-Line) Solder Eyelet(s)
