MMT471A315-0004

Active

METZ CONNECT USA Inc.

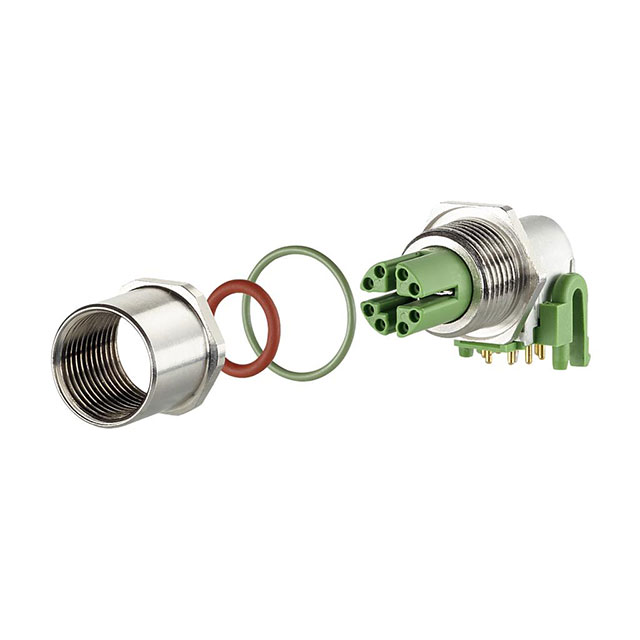

CONN JACK FMALE 8POS GOLD SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

MMT471A315-0004

Active

METZ CONNECT USA Inc.

CONN JACK FMALE 8POS GOLD SOLDER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MMT471A315-0004

Applications	Railway
Color	Silver
Connector Type	Female Sockets, Jack
Contact Finish - Mating	Gold
Contact Material	Copper Zinc
Current Rating (Amps)	0.5 A
Features	Board Guide, Board Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Feature	Bulkhead
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	8
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	X
Primary Material	Metal
Shell Material	Copper Zinc
Shell Size - Insert	M12-8
Termination	Solder
Voltage Rating	50 VAC

MMT471A31 Series

Part	Contact Material	Mounting Feature	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Ingress Protection	Voltage Rating	Orientation	Number of Positions	Shell Size - Insert	Color	Contact Finish - Mating	Termination	Current Rating (Amps)	Features	Shell Material	Primary Material	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shielding
METZ CONNECT USA Inc. MMT471A315-0005	Copper Zinc	Bulkhead	Female Sockets Jack	85 °C	-40 °C	Railway	IP67 - Dust Tight Waterproof	50 VAC 60 VDC	X	8	M12-8	Silver	Gold	Solder	0.5 A	Board Guide Board Lock	Copper Zinc	Metal	Panel Mount Right Angle Through Hole
METZ CONNECT USA Inc. MMT471A315-0003	Copper Zinc	Bulkhead	Female Sockets Jack	85 °C	-40 °C	Railway	IP67 - Dust Tight Waterproof	50 VAC 60 VDC	X	8	M12-8	Silver	Gold	Solder	0.5 A	Board Guide Board Lock	Copper Zinc	Metal	Panel Mount Right Angle Through Hole
METZ CONNECT USA Inc. MMT471A315-0004	Copper Zinc	Bulkhead	Female Sockets Jack	85 °C	-40 °C	Railway	IP67 - Dust Tight Waterproof	50 VAC	X	8	M12-8	Silver	Gold	Solder	0.5 A	Board Guide Board Lock	Copper Zinc	Metal	Panel Mount Right Angle Through Hole
METZ CONNECT USA Inc. MMT471A315-0001	Copper Zinc	Bulkhead - Rear Side Nut	Female Sockets Jack	85 °C	-40 °C	Railway	IP67 - Dust Tight Waterproof	50 VAC 60 VDC	X	8	M12-8	Silver	Gold	Solder		Board Guide Board Lock	Copper Zinc	Metal	Panel Mount Right Angle Through Hole	0.203 Ám	8 Áin	Shielded
METZ CONNECT USA Inc. MMT471A315	Copper Zinc	Bulkhead - Rear Side Nut	Female Sockets Jack	85 °C	-40 °C	Railway	IP67 - Dust Tight Waterproof	50 VAC 60 VDC	X	8	M12-8	Silver	Gold	Solder		Board Guide Board Lock	Copper Zinc	Metal	Panel Mount Right Angle Through Hole	0.203 Ám	8 Áin	Shielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 39.91

Description

General part information

MMT471A31 Series

8 Position Circular Connector Jack, Female Sockets Solder

Documents

Technical documentation and resources

No documents available
