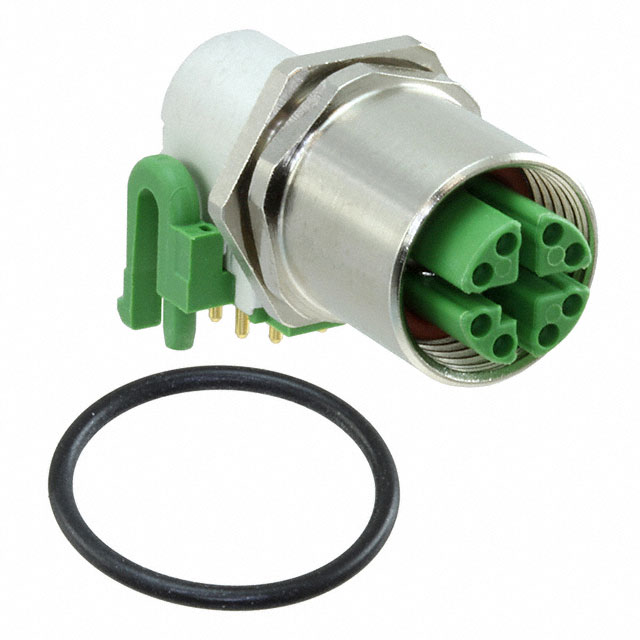

MMT471A315
ActiveMETZ CONNECT USA Inc.
CONN JACK FMALE 8POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
MMT471A315
ActiveMETZ CONNECT USA Inc.
CONN JACK FMALE 8POS GOLD SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MMT471A315 |
|---|---|
| Applications | Railway |
| Color | Silver |
| Connector Type | Female Sockets, Jack |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 0.203 Ám |
| Contact Finish Thickness - Mating | 8 Áin |
| Contact Material | Copper Zinc |
| Features | Board Guide, Board Lock |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 8 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | X |
| Primary Material | Metal |
| Shell Material | Copper Zinc |
| Shell Size - Insert | M12-8 |
| Shielding | Shielded |
| Termination | Solder |
| Voltage Rating | 50 VAC, 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 43.86 | |
| 10 | $ 40.25 | |||
| 25 | $ 38.70 | |||
| 50 | $ 37.41 | |||
| 100 | $ 35.35 | |||
| 250 | $ 34.31 | |||
Description
General part information
MMT471A31 Series
8 Position Circular Connector Jack, Female Sockets Solder
