ATS-TI1OP-519-C1-R3

Active

Advanced Thermal Solutions Inc.

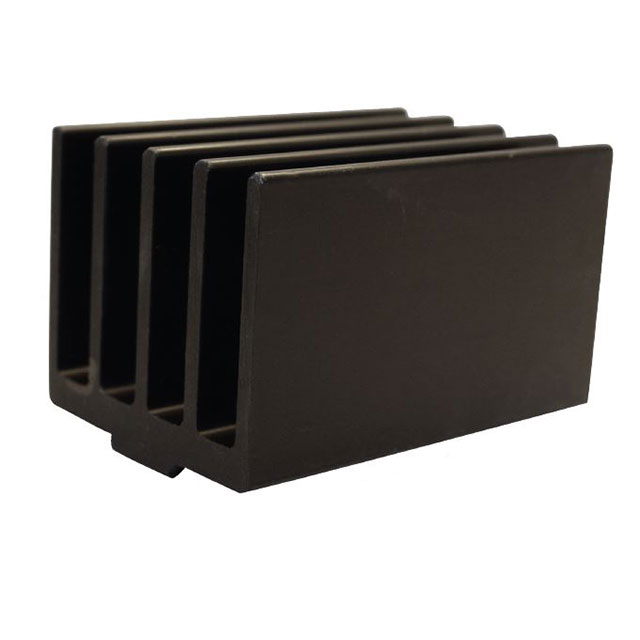

HEAT SINKS HEAT SINK FOR TI MODULE TAS5622/TAS5624, BLACK-ANODIZED, 78X36X35.6MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

ATS-TI1OP-519-C1-R3

Active

Advanced Thermal Solutions Inc.

HEAT SINKS HEAT SINK FOR TI MODULE TAS5622/TAS5624, BLACK-ANODIZED, 78X36X35.6MM

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ATS-TI1OP-519-C1-R3

Attachment Method	Bolt On
Fin Height	35.6 mm
Fin Height	1.402 in
Length [x]	78 mm
Length [x]	3.071 in
Material	Aluminum
Material Finish	Black Anodized
Shape	Rectangular, Fins
Thermal Resistance @ Forced Air Flow	200 LFM, 2.2 °C/W
Type	Top Mount
Width	1.417 "
Width	36 mm

ATS-TI1OP Series

Heat Sinks Heat Sink for TI Module TPA3116/TPA3118/TPA3130, Black-Anodized, 50x13.9x25mm

Part	Attachment Method	Width	Width	Type	Thermal Resistance @ Forced Air Flow	Shape	Material Finish	Fin Height	Fin Height	Length [x]	Length [x]	Material	Fin Height [z]	Fin Height [z]
Advanced Thermal Solutions Inc. ATS-TI10P-519-C1-R1	Bolt On	1.417 "	36 mm	Top Mount	2.2 °C/W 200 LFM	Rectangular Fins	Black Anodized	35.6 mm	1.402 in	78 mm	3.071 in	Aluminum
Advanced Thermal Solutions Inc. ATS-TI10P-521-C1-R0	Bolt On	0.547 "	13.89 mm	Top Mount	8.5 °C/W 200 LFM	Rectangular Fins	Black Anodized	25 mm	0.984 in	50 mm	1.969 in	Aluminum
Advanced Thermal Solutions Inc. ATS-TI10P-518-C1-R1	Bolt On	1.417 "	36 mm	Top Mount	3 °C/W 200 LFM	Rectangular Fins	Black Anodized			78 mm	3.071 in	Aluminum	28.09 mm	1.106 in
Advanced Thermal Solutions Inc. ATS-TI10P-519-C1-R2	Bolt On	1.417 "	36 mm	Top Mount	2.2 °C/W 200 LFM	Rectangular Fins	Black Anodized	35.6 mm	1.402 in	78 mm	3.071 in	Aluminum
Advanced Thermal Solutions Inc. ATS-TI1OP-519-C1-R3	Bolt On	1.417 "	36 mm	Top Mount	2.2 °C/W 200 LFM	Rectangular Fins	Black Anodized	35.6 mm	1.402 in	78 mm	3.071 in	Aluminum
Advanced Thermal Solutions Inc. ATS-TI1OP-563-C1-R0	Bolt On	1.417 "	36 mm	Top Mount	2.7 °C/W	Rectangular Fins	Black Anodized	35.6 mm	1.402 in	54 mm	2.126 "	Aluminum
Advanced Thermal Solutions Inc. ATS-TI1OP-518-C1-R0	Bolt On	1.417 "	36 mm	Top Mount	3 °C/W 200 LFM	Rectangular Fins	Black Anodized			78 mm	3.071 in	Aluminum	28.09 mm	1.106 in
Advanced Thermal Solutions Inc. ATS-TI10P-521-C2-R0	Bolt On	0.547 "	13.89 mm	Top Mount	8.5 °C/W 200 LFM	Rectangular Fins	Black Anodized	25 mm	0.984 in	50 mm	1.969 in	Aluminum
Advanced Thermal Solutions Inc. ATS-TI1OP-521-C1-R1	Bolt On	0.547 "	13.89 mm	Top Mount	8.5 °C/W 200 LFM	Rectangular Fins	Black Anodized	25 mm	0.984 in	50 mm	1.969 in	Aluminum
