ATS-TI10P-521-C1-R0

Active

Advanced Thermal Solutions Inc.

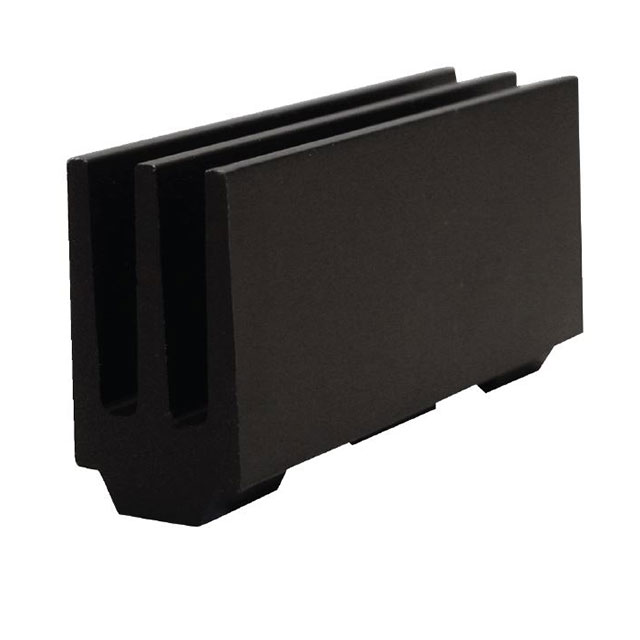

HEAT SINK FOR TI MOD #TPA3116D

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ATS-TI10P-521-C1-R0

Active

Advanced Thermal Solutions Inc.

HEAT SINK FOR TI MOD #TPA3116D

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ATS-TI10P-521-C1-R0

Attachment Method	Bolt On
Fin Height	0.984 in
Fin Height	25 mm
Length [x]	1.969 in
Length [x]	50 mm
Material	Aluminum
Material Finish	Black Anodized
Shape	Rectangular, Fins
Thermal Resistance @ Forced Air Flow	200 LFM, 8.5 °C/W
Type	Top Mount
Width	0.547 "
Width	13.89 mm

ATS-TI1OP Series

Heat Sinks Heat Sink for TI Module TPA3116/TPA3118/TPA3130, Black-Anodized, 50x13.9x25mm

Part	Attachment Method	Width	Width	Type	Thermal Resistance @ Forced Air Flow	Shape	Material Finish	Fin Height	Fin Height	Length [x]	Length [x]	Material	Fin Height [z]	Fin Height [z]
Advanced Thermal Solutions Inc. ATS-TI10P-519-C1-R1	Bolt On	1.417 "	36 mm	Top Mount	2.2 °C/W 200 LFM	Rectangular Fins	Black Anodized	35.6 mm	1.402 in	78 mm	3.071 in	Aluminum
Advanced Thermal Solutions Inc. ATS-TI10P-521-C1-R0	Bolt On	0.547 "	13.89 mm	Top Mount	8.5 °C/W 200 LFM	Rectangular Fins	Black Anodized	25 mm	0.984 in	50 mm	1.969 in	Aluminum
Advanced Thermal Solutions Inc. ATS-TI10P-518-C1-R1	Bolt On	1.417 "	36 mm	Top Mount	3 °C/W 200 LFM	Rectangular Fins	Black Anodized			78 mm	3.071 in	Aluminum	28.09 mm	1.106 in
Advanced Thermal Solutions Inc. ATS-TI10P-519-C1-R2	Bolt On	1.417 "	36 mm	Top Mount	2.2 °C/W 200 LFM	Rectangular Fins	Black Anodized	35.6 mm	1.402 in	78 mm	3.071 in	Aluminum
Advanced Thermal Solutions Inc. ATS-TI1OP-519-C1-R3	Bolt On	1.417 "	36 mm	Top Mount	2.2 °C/W 200 LFM	Rectangular Fins	Black Anodized	35.6 mm	1.402 in	78 mm	3.071 in	Aluminum
Advanced Thermal Solutions Inc. ATS-TI1OP-563-C1-R0	Bolt On	1.417 "	36 mm	Top Mount	2.7 °C/W	Rectangular Fins	Black Anodized	35.6 mm	1.402 in	54 mm	2.126 "	Aluminum
Advanced Thermal Solutions Inc. ATS-TI1OP-518-C1-R0	Bolt On	1.417 "	36 mm	Top Mount	3 °C/W 200 LFM	Rectangular Fins	Black Anodized			78 mm	3.071 in	Aluminum	28.09 mm	1.106 in
Advanced Thermal Solutions Inc. ATS-TI10P-521-C2-R0	Bolt On	0.547 "	13.89 mm	Top Mount	8.5 °C/W 200 LFM	Rectangular Fins	Black Anodized	25 mm	0.984 in	50 mm	1.969 in	Aluminum
Advanced Thermal Solutions Inc. ATS-TI1OP-521-C1-R1	Bolt On	0.547 "	13.89 mm	Top Mount	8.5 °C/W 200 LFM	Rectangular Fins	Black Anodized	25 mm	0.984 in	50 mm	1.969 in	Aluminum

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 3.66

Description

General part information

ATS-TI1OP Series

Heat Sinks Heat Sink for TI Module TPA3116/TPA3118/TPA3130, Black-Anodized, 50x13.9x25mm

Documents

Technical documentation and resources
