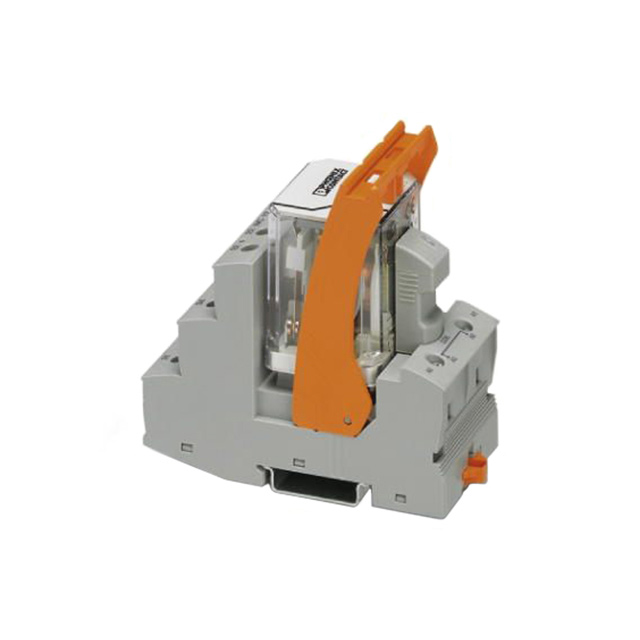

RELAY GEN PURPOSE 3PDT 10A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2903288

Phoenix Contact

RELAY GEN PURPOSE 3PDT 10A 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2903288

Approval Agency	CSA
Coil Current	56 mA
Coil Resistance	429 Ohms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	3PDT (3 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	10 A
Features	Socket Included, Diode, Lighted Indicator
Mounting Type	DIN Rail
Operate Time	20 ms
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	20 ms
Termination Style	Screw Terminal

29032 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Operate Time	Coil Current	Release Time	Termination Style	Coil Type	Coil Voltage	Approval Agency	Relay Type	Features	Coil Resistance	Contact Rating (Current)	Mounting Type	Contact Form	Switching Voltage
Phoenix Contact 2903276	40 °C	-40 °C	Silver Nickel (AgNi)	25 ms	14 mA	20 ms	Spring Terminal	Non Latching	230 VAC	CSA	General Purpose	Lighted Indicator Socket Included Varistor	16.43 kOhms	8 A	DIN Rail	3PDT (3 Form C)
Phoenix Contact 2903282	40 °C	-40 °C	Silver Nickel (AgNi)	25 ms	14 mA	20 ms	Screw Terminal	Non Latching	230 VAC	CSA	General Purpose	Lighted Indicator Socket Included	16.43 kOhms	8 A	DIN Rail	3PST-NO (3 Form A)
Phoenix Contact 2903299	50 °C	-40 °C	Silver Nickel (AgNi)	15 ms	23 mA	20 ms	Screw Terminal	Non Latching	120 VAC	CSA	General Purpose	Lighted Indicator Socket Included Varistor	5.22 kOhms	6 A	DIN Rail	3PDT (3 Form C)	250 VAC 250 VDC
Phoenix Contact 2903275	60 °C	-40 °C	Silver Nickel (AgNi)	20 ms	70 mA	20 ms	Spring Terminal	Non Latching	24 VDC	CSA	General Purpose	Diode Lighted Indicator Socket Included	343 Ohms	10 A	DIN Rail	3PST-NO (3 Form A)
Phoenix Contact 2903295	50 °C	-40 °C	Silver Nickel (AgNi)	15 ms	13 mA	20 ms	Spring Terminal	Non Latching	230 VAC	CSA	General Purpose	Lighted Indicator Socket Included Varistor	17.69 kOhms	7 A	DIN Rail	DPDT (2 Form C)	250 VAC 250 VDC
Phoenix Contact 2903277	40 °C	-40 °C	Silver Nickel (AgNi)	25 ms	24 mA	20 ms	Spring Terminal	Non Latching	120 VAC	CSA	General Purpose	Lighted Indicator Socket Included Varistor	5 kOhms	8 A	DIN Rail	3PDT (3 Form C)
Phoenix Contact 2903296	50 °C	-40 °C	Silver Nickel (AgNi)	15 ms	23 mA	20 ms	Spring Terminal	Non Latching	120 VAC	CSA	General Purpose	Lighted Indicator Socket Included Varistor	5.22 kOhms	7 A	DIN Rail	DPDT (2 Form C)	250 VAC 250 VDC
Phoenix Contact 2903273	40 °C	-40 °C	Silver Nickel (AgNi)	25 ms	14 mA	20 ms	Spring Terminal	Non Latching	230 VAC	CSA	General Purpose	Lighted Indicator Socket Included Varistor	16.43 kOhms	8 A	DIN Rail	3PST-NO (3 Form A)
Phoenix Contact 2903288	60 °C	-40 °C	Silver Nickel (AgNi)	20 ms	56 mA	20 ms	Screw Terminal	Non Latching	24 VDC	CSA	General Purpose	Diode Lighted Indicator Socket Included	429 Ohms	10 A	DIN Rail	3PDT (3 Form C)
Phoenix Contact 2903298	50 °C	-40 °C	Silver Nickel (AgNi)	15 ms	13 mA	20 ms	Screw Terminal	Non Latching	230 VAC	CSA	General Purpose	Lighted Indicator Socket Included Varistor	17.69 kOhms	6 A	DIN Rail	3PDT (3 Form C)	250 VAC 250 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.61

Description

General part information

29032 Series

General Purpose Relay 3PDT (3 Form C) 24VDC Coil DIN Rail
