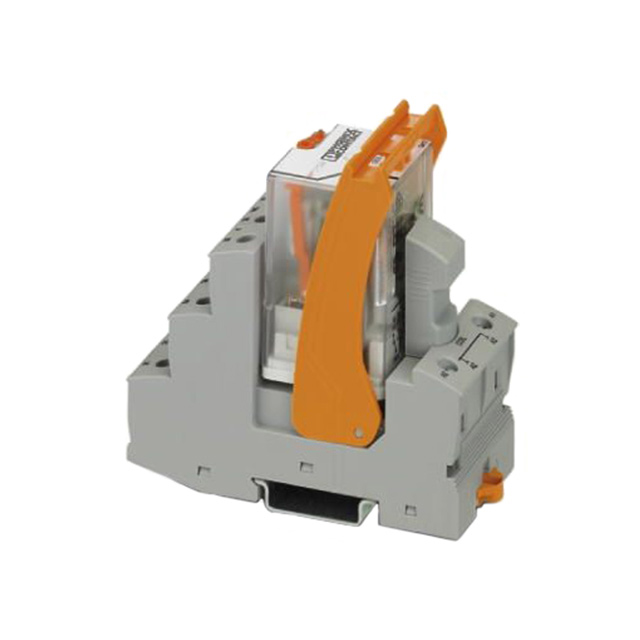

RELAY GEN PURPOSE 3PDT 6A 120V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2903299
Phoenix Contact
RELAY GEN PURPOSE 3PDT 6A 120V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2903299 |
|---|---|
| Approval Agency | CSA |
| Coil Current | 23 mA |
| Coil Resistance | 5.22 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 120 VAC |
| Contact Form | 3PDT (3 Form C) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 6 A |
| Features | Lighted Indicator, Varistor, Socket Included |
| Mounting Type | DIN Rail |
| Operate Time | 15 ms |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 20 ms |
| Switching Voltage | 250 VAC, 250 VDC |
| Termination Style | Screw Terminal |
29032 Series
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Operate Time | Coil Current | Release Time | Termination Style | Coil Type | Coil Voltage | Approval Agency | Relay Type | Features | Coil Resistance | Contact Rating (Current) | Mounting Type | Contact Form | Switching Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact | 40 °C | -40 °C | Silver Nickel (AgNi) | 25 ms | 14 mA | 20 ms | Spring Terminal | Non Latching | 230 VAC | CSA | General Purpose | Lighted Indicator Socket Included Varistor | 16.43 kOhms | 8 A | DIN Rail | 3PDT (3 Form C) | |
Phoenix Contact | 40 °C | -40 °C | Silver Nickel (AgNi) | 25 ms | 14 mA | 20 ms | Screw Terminal | Non Latching | 230 VAC | CSA | General Purpose | Lighted Indicator Socket Included | 16.43 kOhms | 8 A | DIN Rail | 3PST-NO (3 Form A) | |
Phoenix Contact | 50 °C | -40 °C | Silver Nickel (AgNi) | 15 ms | 23 mA | 20 ms | Screw Terminal | Non Latching | 120 VAC | CSA | General Purpose | Lighted Indicator Socket Included Varistor | 5.22 kOhms | 6 A | DIN Rail | 3PDT (3 Form C) | 250 VAC 250 VDC |
Phoenix Contact | 60 °C | -40 °C | Silver Nickel (AgNi) | 20 ms | 70 mA | 20 ms | Spring Terminal | Non Latching | 24 VDC | CSA | General Purpose | Diode Lighted Indicator Socket Included | 343 Ohms | 10 A | DIN Rail | 3PST-NO (3 Form A) | |
Phoenix Contact | 50 °C | -40 °C | Silver Nickel (AgNi) | 15 ms | 13 mA | 20 ms | Spring Terminal | Non Latching | 230 VAC | CSA | General Purpose | Lighted Indicator Socket Included Varistor | 17.69 kOhms | 7 A | DIN Rail | DPDT (2 Form C) | 250 VAC 250 VDC |
Phoenix Contact | 40 °C | -40 °C | Silver Nickel (AgNi) | 25 ms | 24 mA | 20 ms | Spring Terminal | Non Latching | 120 VAC | CSA | General Purpose | Lighted Indicator Socket Included Varistor | 5 kOhms | 8 A | DIN Rail | 3PDT (3 Form C) | |
Phoenix Contact | 50 °C | -40 °C | Silver Nickel (AgNi) | 15 ms | 23 mA | 20 ms | Spring Terminal | Non Latching | 120 VAC | CSA | General Purpose | Lighted Indicator Socket Included Varistor | 5.22 kOhms | 7 A | DIN Rail | DPDT (2 Form C) | 250 VAC 250 VDC |
Phoenix Contact | 40 °C | -40 °C | Silver Nickel (AgNi) | 25 ms | 14 mA | 20 ms | Spring Terminal | Non Latching | 230 VAC | CSA | General Purpose | Lighted Indicator Socket Included Varistor | 16.43 kOhms | 8 A | DIN Rail | 3PST-NO (3 Form A) | |
Phoenix Contact | 60 °C | -40 °C | Silver Nickel (AgNi) | 20 ms | 56 mA | 20 ms | Screw Terminal | Non Latching | 24 VDC | CSA | General Purpose | Diode Lighted Indicator Socket Included | 429 Ohms | 10 A | DIN Rail | 3PDT (3 Form C) | |
Phoenix Contact | 50 °C | -40 °C | Silver Nickel (AgNi) | 15 ms | 13 mA | 20 ms | Screw Terminal | Non Latching | 230 VAC | CSA | General Purpose | Lighted Indicator Socket Included Varistor | 17.69 kOhms | 6 A | DIN Rail | 3PDT (3 Form C) | 250 VAC 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 16.41 | |
Description
General part information
29032 Series
General Purpose Relay 3PDT (3 Form C) 120VAC Coil DIN Rail
