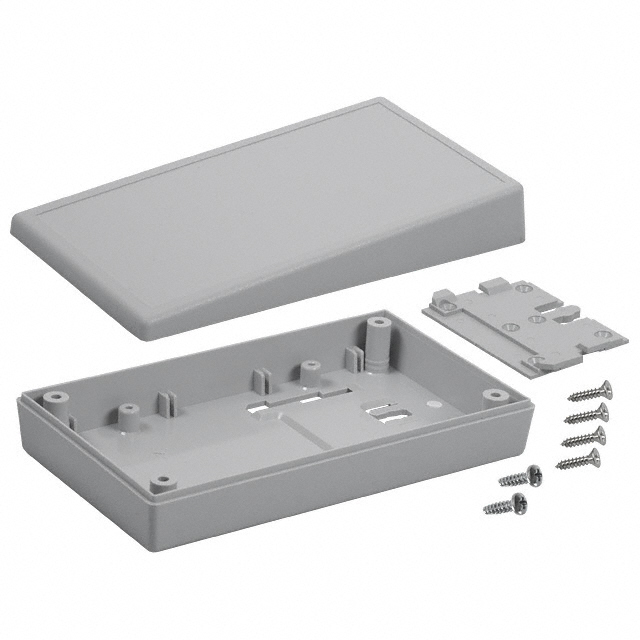

15SW,GY

Active

Serpac

BOX ABS GRAY 5.63"L X 3.25"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS GRAY 5.63"L X 3.25"W

Technical Specifications

Parameters and characteristics for this part

Specification	15SW,GY

Area (L x W)	18.3 in²
Area (L x W)	118 cm²
Color	Gray
Container Type	Box
Design	Split Sides and Slanted Top
Features	PCB Supports, Wall Mount
Height [z]	1.51 in
Height [z]	38.35 mm
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40
Size / Dimension [x]	5.63 in
Size / Dimension [x]	143 mm
Size / Dimension [y]	3.25 "
Size / Dimension [y]	82.55 mm
Thickness	2.54 mm
Thickness	0.1 in
Weight	99.79 g
Weight	0.22 lb

Part	Height [z]	Height [z]	Container Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Design	Area (L x W)	Area (L x W)	Material	Ratings	Features	Weight	Weight	Material Flammability Rating	Color	Thickness	Thickness
Serpac 15SW,AL	1.51 in	38.35 mm	Box	5.63 in	143 mm	3.25 "	82.55 mm	Split Sides and Slanted Top	18.3 in²	118 cm²	Plastic ABS	IP40	PCB Supports Wall Mount	99.79 g	0.22 lb	UL94 HB	Almond	2.54 mm	0.1 in
Serpac 15SW,GY	1.51 in	38.35 mm	Box	5.63 in	143 mm	3.25 "	82.55 mm	Split Sides and Slanted Top	18.3 in²	118 cm²	Plastic ABS	IP40	PCB Supports Wall Mount	99.79 g	0.22 lb	UL94 HB	Gray	2.54 mm	0.1 in
Serpac 15SW,BK	1.51 in	38.35 mm	Box	5.63 in	143 mm	3.25 "	82.55 mm	Split Sides and Slanted Top	18.3 in²	118 cm²	Plastic ABS	IP40	PCB Supports Wall Mount	99.79 g	0.22 lb	UL94 HB	Black	2.54 mm	0.1 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.15

General part information

Box Plastic, ABS Gray Split Sides and Slanted Top 5.630" L x 3.250" W (143.00mm x 82.55mm) X 1.510" (38.35mm)

Technical documentation and resources

No documents available
