15SW,BK

Active

Serpac

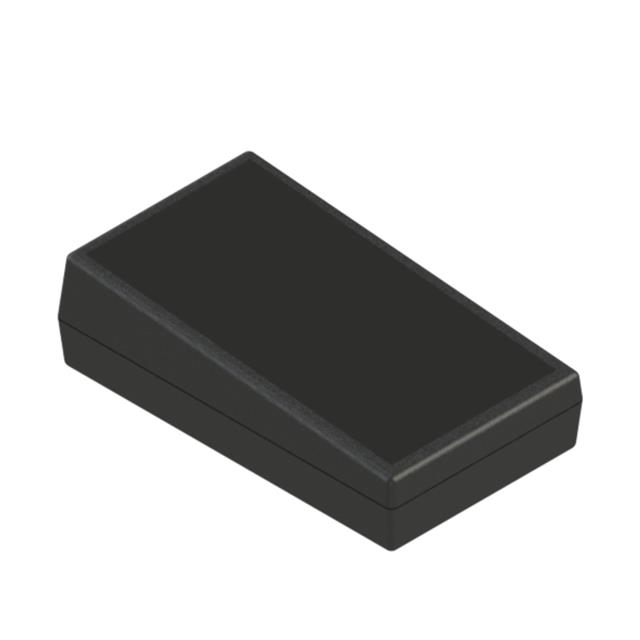

BOX ABS BLACK 5.63"L X 3.25"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS BLACK 5.63"L X 3.25"W

Technical Specifications

Parameters and characteristics for this part

Specification	15SW,BK

Area (L x W)	18.3 in²
Area (L x W)	118 cm²
Color	Black
Container Type	Box
Design	Split Sides and Slanted Top
Features	PCB Supports, Wall Mount
Height [z]	1.51 in
Height [z]	38.35 mm
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40
Size / Dimension [x]	5.63 in
Size / Dimension [x]	143 mm
Size / Dimension [y]	3.25 "
Size / Dimension [y]	82.55 mm
Thickness	2.54 mm
Thickness	0.1 in
Weight	99.79 g
Weight	0.22 lb

Part	Height [z]	Height [z]	Container Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Design	Area (L x W)	Area (L x W)	Material	Ratings	Features	Weight	Weight	Material Flammability Rating	Color	Thickness	Thickness
Serpac 15SW,AL	1.51 in	38.35 mm	Box	5.63 in	143 mm	3.25 "	82.55 mm	Split Sides and Slanted Top	18.3 in²	118 cm²	Plastic ABS	IP40	PCB Supports Wall Mount	99.79 g	0.22 lb	UL94 HB	Almond	2.54 mm	0.1 in
Serpac 15SW,GY	1.51 in	38.35 mm	Box	5.63 in	143 mm	3.25 "	82.55 mm	Split Sides and Slanted Top	18.3 in²	118 cm²	Plastic ABS	IP40	PCB Supports Wall Mount	99.79 g	0.22 lb	UL94 HB	Gray	2.54 mm	0.1 in
Serpac 15SW,BK	1.51 in	38.35 mm	Box	5.63 in	143 mm	3.25 "	82.55 mm	Split Sides and Slanted Top	18.3 in²	118 cm²	Plastic ABS	IP40	PCB Supports Wall Mount	99.79 g	0.22 lb	UL94 HB	Black	2.54 mm	0.1 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, ABS Black Split Sides and Slanted Top 5.630" L x 3.250" W (143.00mm x 82.55mm) X 1.510" (38.35mm)
