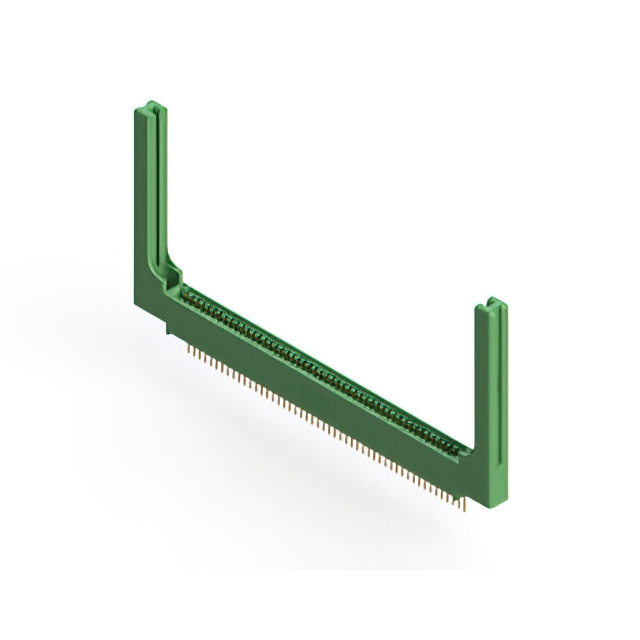

345-050-523-658
ActiveEDAC Inc.
CONN EDGE SINGLE FML 50POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
345-050-523-658
ActiveEDAC Inc.
CONN EDGE SINGLE FML 50POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 345-050-523-658 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Guides |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 50 |
| Number of Positions/Bay/Row [custom] | 50 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
345-050 Series
...
| Part | Number of Rows | Flange Feature | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Contact Type | Color | Card Type | Read Out | Number of Positions/Bay/Row [custom] | Material - Insulation | Pitch [x] | Pitch [x] | Number of Positions | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination Rows | Gender | Termination | Mounting Type | Flange Feature [diameter] | Flange Feature [diameter] | Features | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 1 | Flush Mount M3 Threaded Insert Top Opening | 10 Áin | 0.25 Ám | Copper Alloy | Cantilever | Green | Non Specified - Single Edge | Single | 50 | Polyester Thermoplastic | 2.54 mm | 0.1 in | 50 | Gold | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Female | Solder Eyelet(s) | Through Hole | |||||
EDAC Inc. | 1 | Flush Mount Top Opening Unthreaded | 10 Áin | 0.25 Ám | Copper Alloy | Cantilever | Green | Non Specified - Single Edge | Single | 50 | Polyester Thermoplastic | 2.54 mm | 0.1 in | 50 | Gold | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Female | Wire Wrap | Through Hole | 3.25 mm | 0.128 " | |||
EDAC Inc. | 1 | 4-40 Threaded Insert Top Mount Opening | 10 Áin | 0.25 Ám | Copper Alloy | Cantilever | Green | Non Specified - Single Edge | Single | 50 | Polyester Thermoplastic | 2.54 mm | 0.1 in | 50 | Gold | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Female | Solder | Through Hole | Card Guides | ||||
EDAC Inc. | 2 | Floating Bobbin Top Mount Opening | 10 Áin | 0.25 Ám | Copper Alloy | Cantilever | Green | Non Specified - Dual Edge | Dual | 25 | Polyester Thermoplastic | 2.54 mm | 0.1 in | 50 | Gold | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Female | Solder | Board Edge Straddle Mount | 2.95 mm | 0.116 in | Card Extender | ||
EDAC Inc. | 1 | Top Mount Opening Unthreaded | 10 Áin | 0.25 Ám | Copper Alloy | Cantilever | Green | Non Specified - Single Edge | Single | 50 | Polyester Thermoplastic | 2.54 mm | 0.1 in | 50 | Gold | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Female | Solder | Through Hole | 3.96 mm | 0.156 in | |||
EDAC Inc. | 2 | 10 Áin | 0.25 Ám | Copper Alloy | Cantilever | Green | Non Specified - Dual Edge | Dual | 25 | Polyester Thermoplastic | 2.54 mm | 0.1 in | 50 | Gold | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Female | Solder | Through Hole | ||||||
EDAC Inc. | 2 | Side Mount Opening Unthreaded | 10 Áin | 0.25 Ám | Copper Alloy | Cantilever | Green | Non Specified - Dual Edge | Dual | 25 | Polyester Thermoplastic | 2.54 mm | 0.1 in | 50 | Gold | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Female | Wire Wrap | Through Hole | 3.25 mm | 0.128 in | |||
EDAC Inc. | 1 | Flush Mount Side Opening Unthreaded | 10 Áin | 0.25 Ám | Copper Alloy | Cantilever | Green | Non Specified - Single Edge | Single | 50 | Polyester Thermoplastic | 2.54 mm | 0.1 in | 50 | Gold | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Female | Solder | Through Hole | 3.25 mm | 0.128 " | |||
EDAC Inc. | 1 | Flush Mount Side Opening Unthreaded | 10 Áin | 0.25 Ám | Copper Alloy | Cantilever | Green | Non Specified - Single Edge | Single | 50 | Polyester Thermoplastic | 2.54 mm | 0.1 in | 50 | Gold | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Female | Wire Wrap | Through Hole | 3.25 mm | 0.128 " | |||
EDAC Inc. | 1 | Floating Bobbin Top Mount Opening | 10 Áin | 0.25 Ám | Copper Alloy | Cantilever | Green | Non Specified - Single Edge | Single | 50 | Polyester Thermoplastic | 2.54 mm | 0.1 in | 50 | Gold | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Female | Wire Wrap | Through Hole | 2.95 mm | 0.116 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 15.59 | |
Description
General part information
345-050 Series
50 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
