345-050-500-107

Active

EDAC Inc.

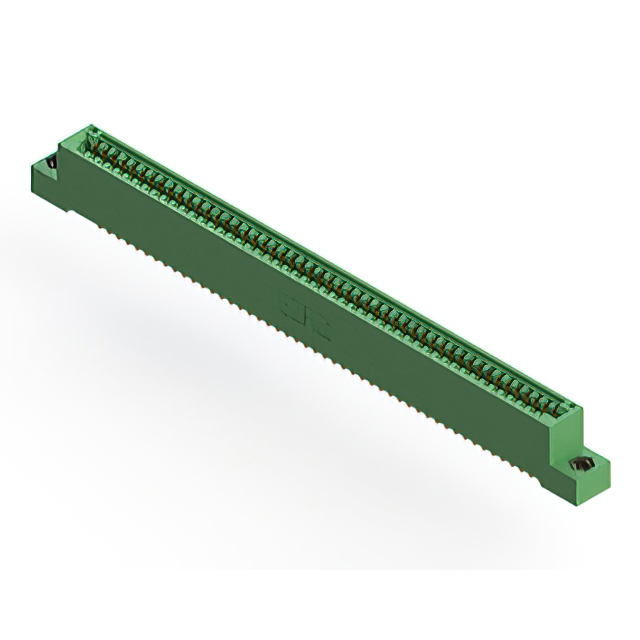

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 50 CONTACTS, PANEL MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

345-050-500-107

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 50 CONTACTS, PANEL MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	345-050-500-107

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Opening, Flush Mount, M3, Threaded Insert
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	50
Number of Positions/Bay/Row [custom]	50
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Solder Eyelet(s)
Termination Rows	1

345-050 Series

...

Part	Number of Rows	Flange Feature	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Contact Type	Color	Card Type	Read Out	Number of Positions/Bay/Row [custom]	Material - Insulation	Pitch [x]	Pitch [x]	Number of Positions	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Termination Rows	Gender	Termination	Mounting Type	Flange Feature [diameter]	Flange Feature [diameter]	Features	Flange Feature	Flange Feature
EDAC Inc. 345-050-500-107	1	Flush Mount M3 Threaded Insert Top Opening	10 Áin	0.25 Ám	Copper Alloy	Cantilever	Green	Non Specified - Single Edge	Single	50	Polyester Thermoplastic	2.54 mm	0.1 in	50	Gold	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Female	Solder Eyelet(s)	Through Hole
EDAC Inc. 345-050-544-102	1	Flush Mount Top Opening Unthreaded	10 Áin	0.25 Ám	Copper Alloy	Cantilever	Green	Non Specified - Single Edge	Single	50	Polyester Thermoplastic	2.54 mm	0.1 in	50	Gold	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Female	Wire Wrap	Through Hole	3.25 mm	0.128 "
EDAC Inc. 345-050-523-658	1	4-40 Threaded Insert Top Mount Opening	10 Áin	0.25 Ám	Copper Alloy	Cantilever	Green	Non Specified - Single Edge	Single	50	Polyester Thermoplastic	2.54 mm	0.1 in	50	Gold	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Female	Solder	Through Hole			Card Guides
EDAC Inc. 345-050-560-503	2	Floating Bobbin Top Mount Opening	10 Áin	0.25 Ám	Copper Alloy	Cantilever	Green	Non Specified - Dual Edge	Dual	25	Polyester Thermoplastic	2.54 mm	0.1 in	50	Gold	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Female	Solder	Board Edge Straddle Mount	2.95 mm	0.116 in	Card Extender
EDAC Inc. 345-050-525-604	1	Top Mount Opening Unthreaded	10 Áin	0.25 Ám	Copper Alloy	Cantilever	Green	Non Specified - Single Edge	Single	50	Polyester Thermoplastic	2.54 mm	0.1 in	50	Gold	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Female	Solder	Through Hole	3.96 mm	0.156 in
EDAC Inc. 345-050-523-201	2		10 Áin	0.25 Ám	Copper Alloy	Cantilever	Green	Non Specified - Dual Edge	Dual	25	Polyester Thermoplastic	2.54 mm	0.1 in	50	Gold	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Female	Solder	Through Hole
EDAC Inc. 345-050-541-512	2	Side Mount Opening Unthreaded	10 Áin	0.25 Ám	Copper Alloy	Cantilever	Green	Non Specified - Dual Edge	Dual	25	Polyester Thermoplastic	2.54 mm	0.1 in	50	Gold	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Female	Wire Wrap	Through Hole				3.25 mm	0.128 in
EDAC Inc. 345-050-521-112	1	Flush Mount Side Opening Unthreaded	10 Áin	0.25 Ám	Copper Alloy	Cantilever	Green	Non Specified - Single Edge	Single	50	Polyester Thermoplastic	2.54 mm	0.1 in	50	Gold	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Female	Solder	Through Hole	3.25 mm	0.128 "
EDAC Inc. 345-050-540-112	1	Flush Mount Side Opening Unthreaded	10 Áin	0.25 Ám	Copper Alloy	Cantilever	Green	Non Specified - Single Edge	Single	50	Polyester Thermoplastic	2.54 mm	0.1 in	50	Gold	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Female	Wire Wrap	Through Hole	3.25 mm	0.128 "
EDAC Inc. 345-050-541-603	1	Floating Bobbin Top Mount Opening	10 Áin	0.25 Ám	Copper Alloy	Cantilever	Green	Non Specified - Single Edge	Single	50	Polyester Thermoplastic	2.54 mm	0.1 in	50	Gold	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Female	Wire Wrap	Through Hole	2.95 mm	0.116 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 25.26
Newark	Each	1	$ 28.22
		100	$ 21.97
		250	$ 19.79
		500	$ 17.77
		1000	$ 15.05

Description

General part information

345-050 Series

50 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
