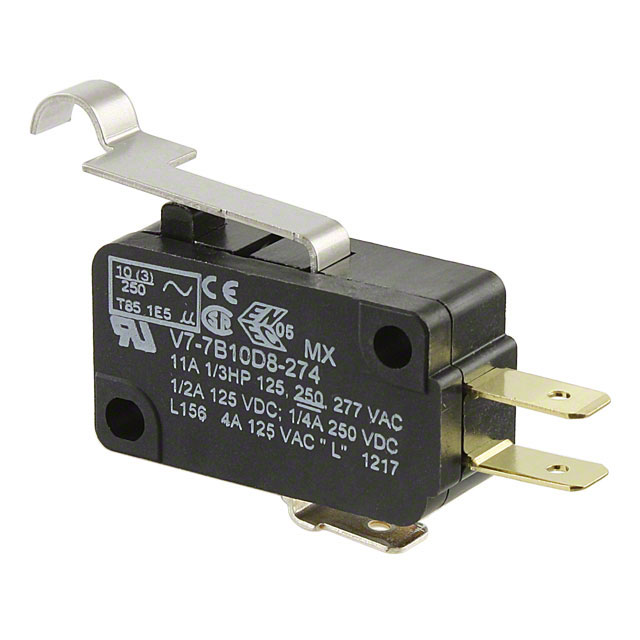

SWITCH SNAP ACTION SPDT 11A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsV7 Series Part Number Breakdown Datasheet

V7-7B10D8-274

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 11A 125V

Deep-Dive with AI

DocumentsV7 Series Part Number Breakdown Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	V7-7B10D8-274

Actuator Type	Simulated Roller, Lever
Circuit	SPDT
Current Rating (Amps)	11 A, 500 mA
Differential Travel	0.81 mm
Differential Travel	0.032 in
Electrical Life	100000 Cycles
Mechanical Life	10000000 Cycles
Mounting Type	Chassis Mount
Operating Force	141 gf
Operating Position	0.73 in
Operating Position	18.5 mm
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Overtravel	0.075 in
Overtravel	1.9 mm
Pretravel	0.11 in
Pretravel	2.8 mm
Release Force	28 gf
Switch Function	On-Mom
Termination Style	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V
Voltage Rating - DC	125 VDC

V7-7B1 Series

Part	Differential Travel	Differential Travel	Release Force	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Pretravel	Pretravel	Termination Style	Actuator Type	Current Rating (Amps)	Electrical Life	Voltage Rating - DC	Mechanical Life	Switch Function	Voltage Rating - AC	Operating Force	Overtravel	Overtravel	Mounting Type	Operating Position	Operating Position
Honeywell Sensing and Productivity Solutions V7-7B17D862-201	0.013 in	0.33 mm	28 gf	SPDT	85 °C	-40 °C	1.4 mm	0.055 in	Quick Connect - 0.187" (4.7mm)	Lever Roller	11 A 500 mA	100000 Cycles	125 VDC	10000000 Cycles	On-Mom	125 V	283 gf	0.035 "	0.9 mm	Chassis Mount
Honeywell Sensing and Productivity Solutions V7-7B10D8-274	0.032 in	0.81 mm	28 gf	SPDT	85 °C	-40 °C	2.8 mm	0.11 in	Quick Connect - 0.187" (4.7mm)	Lever Simulated Roller	11 A 500 mA	100000 Cycles	125 VDC	10000000 Cycles	On-Mom	125 V	141 gf	0.075 in	1.9 mm	Chassis Mount	0.73 in	18.5 mm
Honeywell Sensing and Productivity Solutions V7-7B17D8-481	0.02 in	0.5 mm	28 gf	SPDT	85 °C	-40 °C	2.16 mm	0.085 in	Quick Connect - 0.187" (4.7mm)	Formed Lever	11 A 500 mA	100000 Cycles	125 VDC	10000000 Cycles	On-Mom	125 V	178 gf	0.051 in	1.3 mm	Chassis Mount	0.77 "	19.5 mm
Honeywell Sensing and Productivity Solutions V7-7B17D8-073	0.055 in	1.4 mm	9 gf	SPDT	85 °C	-40 °C	6.35 mm	0.25 in	Quick Connect - 0.187" (4.7mm)	Formed Lever	11 A 500 mA	100000 Cycles	125 VDC	10000000 Cycles	On-Mom	125 V	60 gf	0.125 in	3.2 mm	Chassis Mount	0.602 "	15.3 mm
Honeywell Sensing and Productivity Solutions V7-7B19D8-640	0.06 "	1.5 mm	8 gf	SPDT	85 °C	-40 °C	6.85 mm	0.27 in	Quick Connect - 0.187" (4.7mm)		11 A 500 mA	100000 Cycles	125 VDC	10000000 Cycles	On-Mom	125 V	63 gf	0.134 in	3.4 mm	Chassis Mount	0.602 "	15.3 mm
