V7-7B17D862-201

Active

Honeywell Sensing and Productivity Solutions

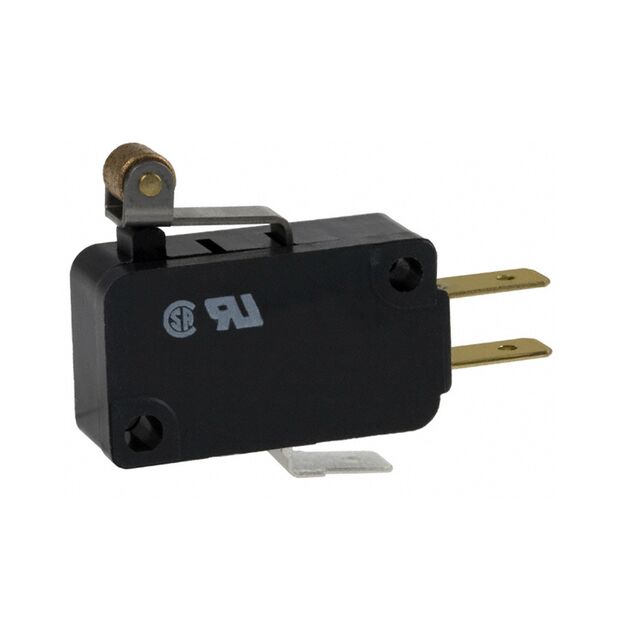

SWITCH SNAP ACTION SPDT 11A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsV7 Series Basic Switches Catalog Datasheet

V7-7B17D862-201

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 11A 125V

Deep-Dive with AI

DocumentsV7 Series Basic Switches Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	V7-7B17D862-201

Actuator Type	Roller, Lever
Circuit	SPDT
Current Rating (Amps)	11 A, 500 mA
Differential Travel	0.013 in
Differential Travel	0.33 mm
Electrical Life	100000 Cycles
Mechanical Life	10000000 Cycles
Mounting Type	Chassis Mount
Operating Force	283 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Overtravel	0.035 "
Overtravel	0.9 mm
Pretravel	1.4 mm
Pretravel	0.055 in
Release Force	28 gf
Switch Function	On-Mom
Termination Style	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V
Voltage Rating - DC	125 VDC

V7-7B1 Series

Part	Differential Travel	Differential Travel	Release Force	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Pretravel	Pretravel	Termination Style	Actuator Type	Current Rating (Amps)	Electrical Life	Voltage Rating - DC	Mechanical Life	Switch Function	Voltage Rating - AC	Operating Force	Overtravel	Overtravel	Mounting Type	Operating Position	Operating Position
Honeywell Sensing and Productivity Solutions V7-7B17D862-201	0.013 in	0.33 mm	28 gf	SPDT	85 °C	-40 °C	1.4 mm	0.055 in	Quick Connect - 0.187" (4.7mm)	Lever Roller	11 A 500 mA	100000 Cycles	125 VDC	10000000 Cycles	On-Mom	125 V	283 gf	0.035 "	0.9 mm	Chassis Mount
Honeywell Sensing and Productivity Solutions V7-7B10D8-274	0.032 in	0.81 mm	28 gf	SPDT	85 °C	-40 °C	2.8 mm	0.11 in	Quick Connect - 0.187" (4.7mm)	Lever Simulated Roller	11 A 500 mA	100000 Cycles	125 VDC	10000000 Cycles	On-Mom	125 V	141 gf	0.075 in	1.9 mm	Chassis Mount	0.73 in	18.5 mm
Honeywell Sensing and Productivity Solutions V7-7B17D8-481	0.02 in	0.5 mm	28 gf	SPDT	85 °C	-40 °C	2.16 mm	0.085 in	Quick Connect - 0.187" (4.7mm)	Formed Lever	11 A 500 mA	100000 Cycles	125 VDC	10000000 Cycles	On-Mom	125 V	178 gf	0.051 in	1.3 mm	Chassis Mount	0.77 "	19.5 mm
Honeywell Sensing and Productivity Solutions V7-7B17D8-073	0.055 in	1.4 mm	9 gf	SPDT	85 °C	-40 °C	6.35 mm	0.25 in	Quick Connect - 0.187" (4.7mm)	Formed Lever	11 A 500 mA	100000 Cycles	125 VDC	10000000 Cycles	On-Mom	125 V	60 gf	0.125 in	3.2 mm	Chassis Mount	0.602 "	15.3 mm
Honeywell Sensing and Productivity Solutions V7-7B19D8-640	0.06 "	1.5 mm	8 gf	SPDT	85 °C	-40 °C	6.85 mm	0.27 in	Quick Connect - 0.187" (4.7mm)		11 A 500 mA	100000 Cycles	125 VDC	10000000 Cycles	On-Mom	125 V	63 gf	0.134 in	3.4 mm	Chassis Mount	0.602 "	15.3 mm
