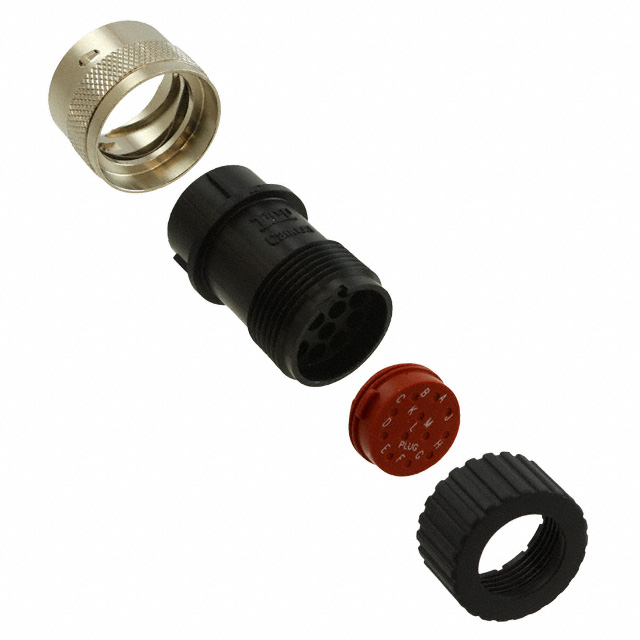

TN6S14-0012P1L
ActiveITT Cannon, LLC
CONN CIRCULAR PIN 12 POS CRIMP ST CABLE MOUNT 12 TERMINAL 1 PORT INDIVIDUAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TN6S14-0012P1L
ActiveITT Cannon, LLC
CONN CIRCULAR PIN 12 POS CRIMP ST CABLE MOUNT 12 TERMINAL 1 PORT INDIVIDUAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TN6S14-0012P1L |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Type | Crimp and Solder Cup |
| Fastening Type | Detent Lock |
| Features | Coupling Nut |
| Housing Color | Black, Silver |
| Includes | 1 Grommet, 1 Nut, 1 Connector |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 12 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Size - Insert | 14-0012 |
| Shielding | Unshielded |
| Type | For Male Pins |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
TN6S1 Series
12 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
