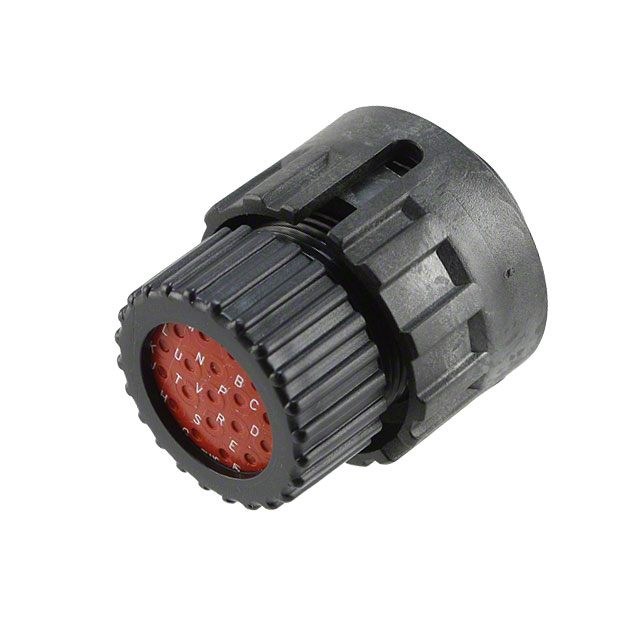

TN6S16-0019P2L
ActiveITT Cannon, LLC
CONN PLUG HSG MALE 19POS INLINE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TN6S16-0019P2L
ActiveITT Cannon, LLC
CONN PLUG HSG MALE 19POS INLINE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TN6S16-0019P2L |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Type | Crimp and Solder Cup |
| Fastening Type | Detent Lock |
| Features | Coupling Nut |
| Housing Color | Black |
| Includes | 1 Grommet, 1 Nut, 1 Connector |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 19 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Size - Insert | 16-0019 |
| Shielding | Unshielded |
| Type | For Male Pins |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 21.74 | |
| 10 | $ 20.69 | |||
Description
General part information
TN6S1 Series
19 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
