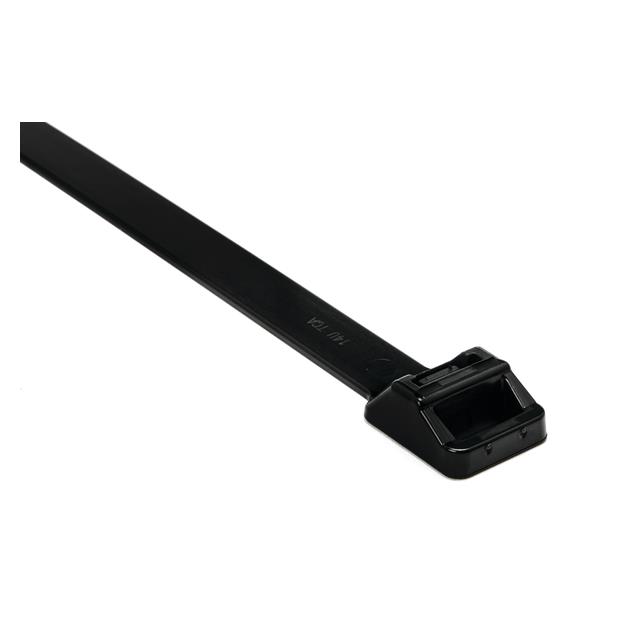

111-00925

Active

HELLERMANNTYTON

CBL TIE LOCKING BLK 250LB 1.855'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

111-00925

Active

HELLERMANNTYTON

CBL TIE LOCKING BLK 250LB 1.855'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	111-00925

Bundle Diameter [diameter]	150 mm
Bundle Diameter [diameter]	5.91 "
Color	Black
Features	UV Resistant
Length - Actual [x]	565.3 mm
Length - Actual [x]	1.855 ft
Length - Approximate	22.25 in
Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Tensile Strength	250 lbs
Tensile Strength	113.4 kg
Width	12.5 mm
Width [x]	0.492 in
Wire/Cable Tie Type	Standard, Locking

111-00 Series

Part	Length - Approximate	Color	Features	Width [y]	Width [y]	Mounting Type	Wire/Cable Tie Type	Length - Actual [x]	Length - Actual [x]	Length - Actual [x]	Bundle Diameter	Bundle Diameter	Tensile Strength	Tensile Strength	Material	Length - Actual	Length - Actual	Length - Actual	Length - Approximate [x]	Bundle Diameter [diameter]	Bundle Diameter [diameter]	Width [x]	Width	Width [x]
HELLERMANNTYTON 111-00468	8 in	Red	UV Resistant	0.181 in	4.6 mm	Free Hanging (In-Line)	Locking Standard	202 mm	0.663 ft	7.95 "	50 mm	1.97 in	22.68 kg	50 lbs	Polyamide (PA66) Nylon 6/6
HELLERMANNTYTON 111-00830	7.75 in	Blue	Halogen Free	0.181 in	4.6 mm	Free Hanging (In-Line)	Locking Standard				50 mm	1.97 in	22.68 kg	50 lbs	Metal Detectable Nylon 6/6 Polyamide (PA66)	200 mm	0.656 ft	7.87 "
HELLERMANNTYTON 111-00698		Blue		0.138 "	3.5 mm	Free Hanging (In-Line)	Locking Standard	150 mm	0.492 ft	5.91 "	36 mm	1.42 in	13.61 kg	30 lbs	Ethylenterafluorineethylene (ETFE)				6 in
HELLERMANNTYTON 111-00829		Blue	Halogen Free	0.138 "	3.5 mm	Free Hanging (In-Line)	Locking Standard	150 mm	0.492 ft	5.91 "	35 mm	1.38 in	13.61 kg	30 lbs	Metal Detectable Nylon 6/6 Polyamide (PA66)				6 in
HELLERMANNTYTON 111-00925	22.25 in	Black	UV Resistant			Free Hanging (In-Line)	Locking Standard	565.3 mm	1.855 ft				113.4 kg	250 lbs	Polyamide (PA66) Nylon 6/6					150 mm	5.91 "	0.492 in	12.5 mm
HELLERMANNTYTON 111-00659	4 in	Blue				Free Hanging (In-Line)	Locking Standard						8.16 kg	18 lbs	Ethylenterafluorineethylene (ETFE)	100 mm	0.328 ft	3.93 in		22 mm	0.86 in	0.098 in		2.5 mm
HELLERMANNTYTON 111-00965	20.75 in	Brown				Free Hanging (In-Line)	Locking Standard	530 mm	1.739 ft				79.4 kg	175 lbs	Polyamide (PA46) Nylon 4/6					150 mm	5.91 "	0.35 in	8.89 mm
HELLERMANNTYTON 111-00931	8 in	Black	Heat Stabilized Impact Resistant UV Resistant	0.181 in	4.6 mm	Free Hanging (In-Line)	Locking Standard	202 mm	0.663 ft	7.95 "	50 mm	1.97 in	22.68 kg	50 lbs	Polyamide (PA66) Nylon 6/6

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 2.28
		50	$ 2.11
		75	$ 2.02
		125	$ 1.91
		175	$ 1.84
		250	$ 1.77
		625	$ 1.61
		1250	$ 1.50
		2500	$ 1.40

Description

General part information

111-00 Series

Standard, Locking Black 5.91" (150.00mm) 0.492" (12.50mm) 250 lbs (113.40 kg)
