111-00830

Active

HELLERMANNTYTON

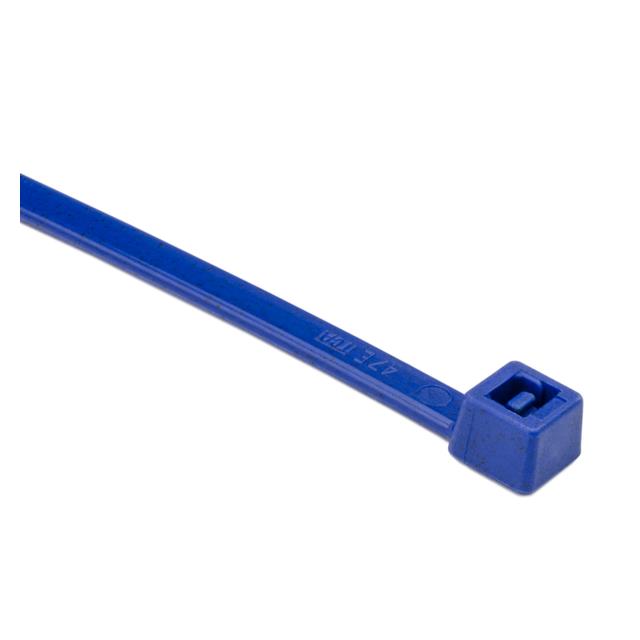

CABLE TIE, METAL CONTENT, NYLON 6.6 (POLYAMIDE 6.6) / METAL PARTICLES, BLUE, 202 MM, 4.6 MM, 50 MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Materials Guide for Bundling & Securing

111-00830

Active

HELLERMANNTYTON

CABLE TIE, METAL CONTENT, NYLON 6.6 (POLYAMIDE 6.6) / METAL PARTICLES, BLUE, 202 MM, 4.6 MM, 50 MM

Deep-Dive with AI

DocumentsDatasheet Materials Guide for Bundling & Securing

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	111-00830

Bundle Diameter	50 mm
Bundle Diameter	1.97 in
Color	Blue
Features	Halogen Free
Length - Actual	200 mm
Length - Actual	0.656 ft
Length - Actual	7.87 "
Length - Approximate	7.75 in
Material	Polyamide (PA66), Metal Detectable, Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Tensile Strength	22.68 kg
Tensile Strength	50 lbs
Width [y]	0.181 in
Width [y]	4.6 mm
Wire/Cable Tie Type	Standard, Locking

111-00 Series

Part	Length - Approximate	Color	Features	Width [y]	Width [y]	Mounting Type	Wire/Cable Tie Type	Length - Actual [x]	Length - Actual [x]	Length - Actual [x]	Bundle Diameter	Bundle Diameter	Tensile Strength	Tensile Strength	Material	Length - Actual	Length - Actual	Length - Actual	Length - Approximate [x]	Bundle Diameter [diameter]	Bundle Diameter [diameter]	Width [x]	Width	Width [x]
HELLERMANNTYTON 111-00468	8 in	Red	UV Resistant	0.181 in	4.6 mm	Free Hanging (In-Line)	Locking Standard	202 mm	0.663 ft	7.95 "	50 mm	1.97 in	22.68 kg	50 lbs	Polyamide (PA66) Nylon 6/6
HELLERMANNTYTON 111-00830	7.75 in	Blue	Halogen Free	0.181 in	4.6 mm	Free Hanging (In-Line)	Locking Standard				50 mm	1.97 in	22.68 kg	50 lbs	Metal Detectable Nylon 6/6 Polyamide (PA66)	200 mm	0.656 ft	7.87 "
HELLERMANNTYTON 111-00698		Blue		0.138 "	3.5 mm	Free Hanging (In-Line)	Locking Standard	150 mm	0.492 ft	5.91 "	36 mm	1.42 in	13.61 kg	30 lbs	Ethylenterafluorineethylene (ETFE)				6 in
HELLERMANNTYTON 111-00829		Blue	Halogen Free	0.138 "	3.5 mm	Free Hanging (In-Line)	Locking Standard	150 mm	0.492 ft	5.91 "	35 mm	1.38 in	13.61 kg	30 lbs	Metal Detectable Nylon 6/6 Polyamide (PA66)				6 in
HELLERMANNTYTON 111-00925	22.25 in	Black	UV Resistant			Free Hanging (In-Line)	Locking Standard	565.3 mm	1.855 ft				113.4 kg	250 lbs	Polyamide (PA66) Nylon 6/6					150 mm	5.91 "	0.492 in	12.5 mm
HELLERMANNTYTON 111-00659	4 in	Blue				Free Hanging (In-Line)	Locking Standard						8.16 kg	18 lbs	Ethylenterafluorineethylene (ETFE)	100 mm	0.328 ft	3.93 in		22 mm	0.86 in	0.098 in		2.5 mm
HELLERMANNTYTON 111-00965	20.75 in	Brown				Free Hanging (In-Line)	Locking Standard	530 mm	1.739 ft				79.4 kg	175 lbs	Polyamide (PA46) Nylon 4/6					150 mm	5.91 "	0.35 in	8.89 mm
HELLERMANNTYTON 111-00931	8 in	Black	Heat Stabilized Impact Resistant UV Resistant	0.181 in	4.6 mm	Free Hanging (In-Line)	Locking Standard	202 mm	0.663 ft	7.95 "	50 mm	1.97 in	22.68 kg	50 lbs	Polyamide (PA66) Nylon 6/6

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 0.49
		300	$ 0.45
		500	$ 0.40
		1000	$ 0.39
Newark	Pack of 100	1	$ 68.89
		5	$ 65.69
		10	$ 54.15
		25	$ 47.74
		100	$ 44.22
		250	$ 42.30
