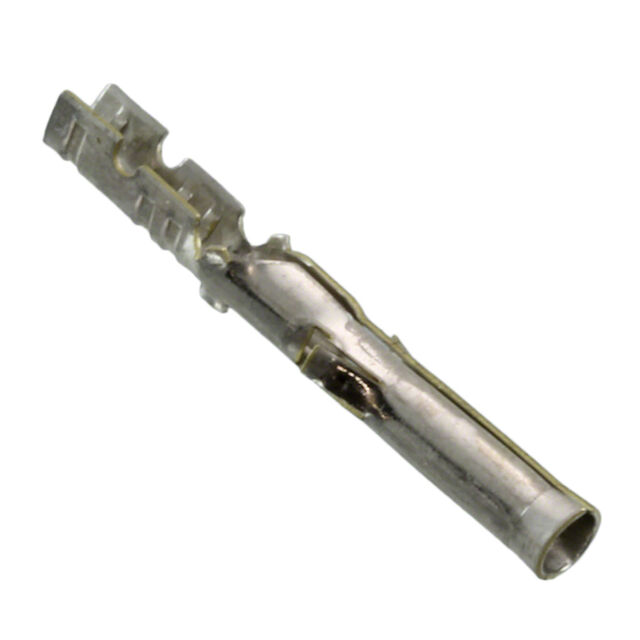

0002061132

Active

Molex

CONN SOCKET 24-30AWG TIN CRIMP

Search across all available documentation for this part.

Active

Molex

CONN SOCKET 24-30AWG TIN CRIMP

Technical Specifications

Parameters and characteristics for this part

Part	Pin or Socket	Wire Gauge [Max]	Wire Gauge [Min]	Contact Termination	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Type
Molex 0002065109	Socket	24 AWG	17.5 AWG	Crimp	0.76 Ám	30 Áin	Gold
Molex 0002066103	Pin	24 AWG	17.5 AWG	Crimp	0.38 µm	15 µin	Gold	Power
Molex 0002066118	Pin	24 AWG	17.5 AWG	Crimp	0.76 Ám	30 Áin	Gold
Molex 0002066143	Pin	30 AWG	24 AWG	Crimp	0.76 Ám	30 Áin	Gold
Molex 0002065147	Socket	30 AWG	24 AWG	Crimp	0.76 Ám	30 Áin	Gold
Molex 0002061132	Socket	30 AWG	24 AWG	Crimp	0.51 µm	20 µin	Tin	Power
Molex 0002062132	Pin	30 AWG	24 AWG	Crimp	0.51 µm	20 µin	Tin	Power
Molex 0002062101	Pin	24 AWG	17.5 AWG	Crimp	0.51 µm	20 µin	Tin	Power
Molex 0002061131	Socket	30 AWG	24 AWG	Crimp	0.51 µm	20 µin	Tin	Power
Molex 0002065148	Socket	30 AWG	24 AWG	Crimp	0.76 Ám	30 Áin	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Socket Contact Tin 24-30 AWG Crimp Power
