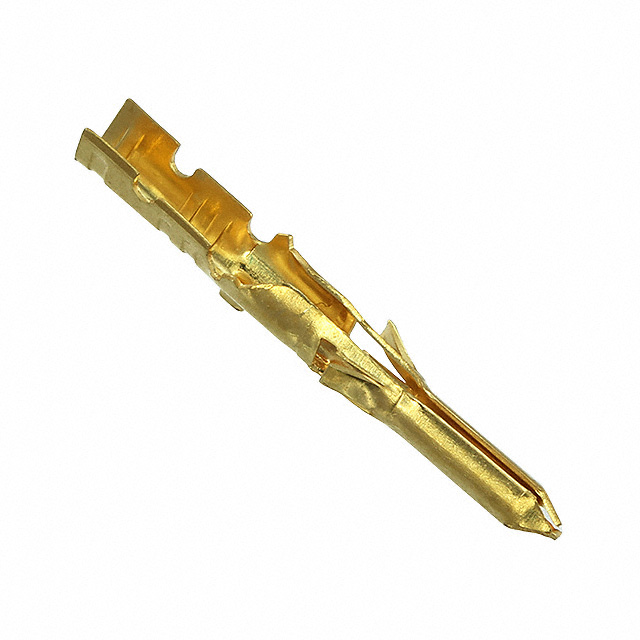

0002066143

Obsolete

Molex

CONN PIN 24-30AWG CRIMP GOLD

Search across all available documentation for this part.

Obsolete

Molex

CONN PIN 24-30AWG CRIMP GOLD

Technical Specifications

Parameters and characteristics for this part

Part	Pin or Socket	Wire Gauge [Max]	Wire Gauge [Min]	Contact Termination	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Type
Molex 0002065109	Socket	24 AWG	17.5 AWG	Crimp	0.76 Ám	30 Áin	Gold
Molex 0002066103	Pin	24 AWG	17.5 AWG	Crimp	0.38 µm	15 µin	Gold	Power
Molex 0002066118	Pin	24 AWG	17.5 AWG	Crimp	0.76 Ám	30 Áin	Gold
Molex 0002066143	Pin	30 AWG	24 AWG	Crimp	0.76 Ám	30 Áin	Gold
Molex 0002065147	Socket	30 AWG	24 AWG	Crimp	0.76 Ám	30 Áin	Gold
Molex 0002061132	Socket	30 AWG	24 AWG	Crimp	0.51 µm	20 µin	Tin	Power
Molex 0002062132	Pin	30 AWG	24 AWG	Crimp	0.51 µm	20 µin	Tin	Power
Molex 0002062101	Pin	24 AWG	17.5 AWG	Crimp	0.51 µm	20 µin	Tin	Power
Molex 0002061131	Socket	30 AWG	24 AWG	Crimp	0.51 µm	20 µin	Tin	Power
Molex 0002065148	Socket	30 AWG	24 AWG	Crimp	0.76 Ám	30 Áin	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pin Contact Gold 24-30 AWG Crimp

Technical documentation and resources

No documents available
