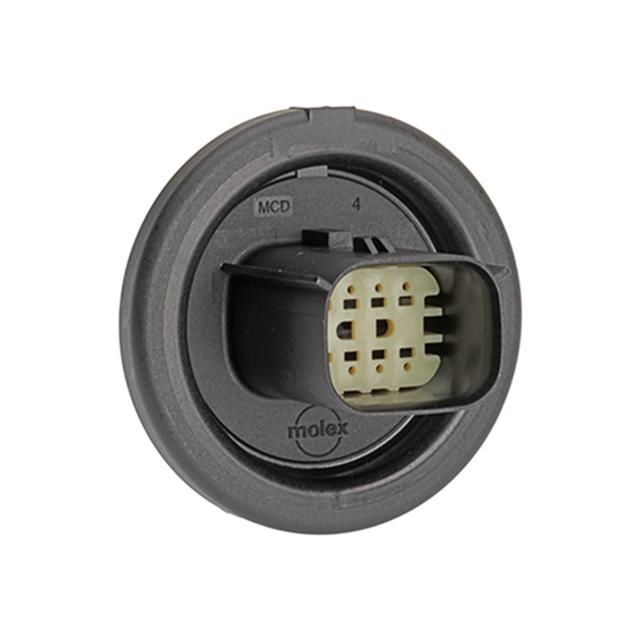

0348404420
ActiveMolex
CONN HOUSING PL 8 POS 3.5MM CRIMP ST CABLE MOUNT LIGHT GRAY/NATURAL BAG
Deep-Dive with AI
Search across all available documentation for this part.
0348404420
ActiveMolex
CONN HOUSING PL 8 POS 3.5MM CRIMP ST CABLE MOUNT LIGHT GRAY/NATURAL BAG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0348404420 |
|---|---|
| Color | Gray |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Male Blade |
| Fastening Type | Twist Latch |
| Features | IP67K |
| Mounting Type | Bulkhead, Panel Mount |
| Note | Contacts Not Included |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 3.5 mm |
| Pitch [x] | 0.138 in |
| Row Spacing [Max] | 0.236 in |
| Row Spacing [Max] | 6 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.69 | |
| 10 | $ 2.28 | |||
| 25 | $ 2.14 | |||
| 50 | $ 2.04 | |||
| 100 | $ 1.94 | |||
Description
General part information
034840 Series
8 Rectangular Connectors - Housings Plug Gray 0.138" (3.50mm)
