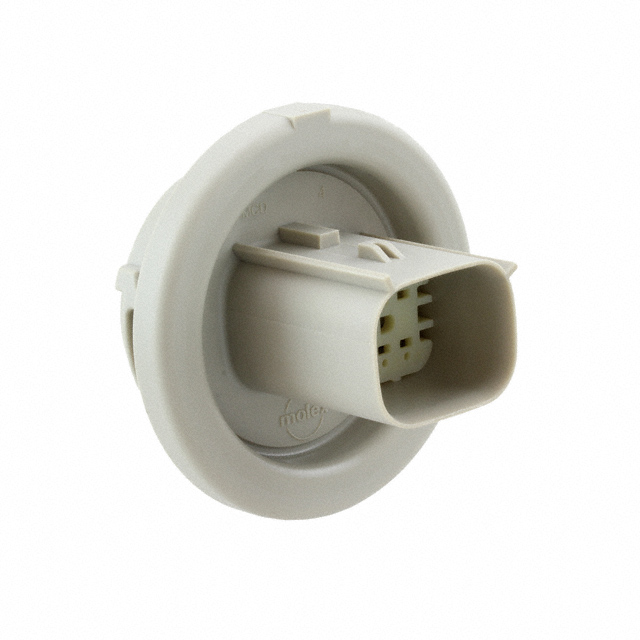

0348404020

Obsolete

Molex

CONN PLUG HSG 8POS 3.50MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMX150 Test Summary MX150 Series +2

0348404020

Obsolete

Molex

CONN PLUG HSG 8POS 3.50MM

Deep-Dive with AI

DocumentsMX150 Test Summary MX150 Series +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0348404020

Color	Gray
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Male Blade
Fastening Type	Twist Latch
Features	IP67K
Mounting Type	Bulkhead, Panel Mount
Note	Contacts Not Included
Number of Positions	8
Number of Rows	2
Pitch [x]	3.5 mm
Pitch [x]	0.138 in
Row Spacing [Max]	0.236 in
Row Spacing [Max]	6 mm

034840 Series

Part	Connector Type	Contact Termination	Row Spacing [Max]	Row Spacing [Max]	Pitch [x]	Pitch [x]	Number of Positions	Number of Rows	Features	Note	Color	Contact Type	Fastening Type	Mounting Type	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]
Molex 0348406020	Plug	Crimp	0.236 in	6 mm	3.5 mm	0.138 in	12	2	IP67K	Contacts Not Included	Gray	Male Blade	Twist Latch	Bulkhead Panel Mount
Molex 0348404020	Plug	Crimp	0.236 in	6 mm	3.5 mm	0.138 in	8	2	IP67K	Contacts Not Included	Gray	Male Blade	Twist Latch	Bulkhead Panel Mount
Molex 0348408420	Plug	Crimp	0.236 in	6 mm	3.5 mm	0.138 in		2	IP67K	Contacts Not Included	Gray	Male Blade	Twist Latch	Bulkhead Panel Mount	16	125 °C	-40 °C
Molex 0348404420	Plug	Crimp	0.236 in	6 mm	3.5 mm	0.138 in	8	2	IP67K	Contacts Not Included	Gray	Male Blade	Twist Latch	Bulkhead Panel Mount		125 °C	-40 °C
Molex 0348408030	Plug	Crimp	0.236 in	6 mm	3.5 mm	0.138 in		2	IP67K	Contacts Not Included	Gray	Male Blade	Twist Latch	Bulkhead Panel Mount	16
Molex 0348406410	Plug	Crimp	0.236 in	6 mm	3.5 mm	0.138 in	12	2	IP67K	Contacts Not Included	Black	Male Blade	Twist Latch	Bulkhead Panel Mount		125 °C	-40 °C
Molex 0348406420	Plug	Crimp	0.236 in	6 mm	3.5 mm	0.138 in	12	2	IP67K	Contacts Not Included	Gray	Male Blade	Twist Latch	Bulkhead Panel Mount		125 °C	-40 °C
Molex 0348406040	Plug	Crimp	0.236 in	6 mm	3.5 mm	0.138 in	12	2	IP67K	Contacts Not Included	Gray	Male Blade	Twist Latch	Bulkhead Panel Mount
Molex 0348404030	Plug	Crimp	0.236 in	6 mm	3.5 mm	0.138 in	8	2	IP67K	Contacts Not Included	Gray	Male Blade	Twist Latch	Bulkhead Panel Mount
Molex 0348403440	Plug	Crimp	0.236 in	6 mm	3.5 mm	0.138 in	6	2	IP67K	Contacts Not Included	Gray	Male Blade	Twist Latch	Bulkhead Panel Mount		125 °C	-40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

034840 Series

8 Rectangular Connectors - Housings Plug Gray 0.138" (3.50mm)

Documents

Technical documentation and resources

MX150 Test Summary

MX150 Series

Datasheet

TPA Devices Product Spec

Datasheet
