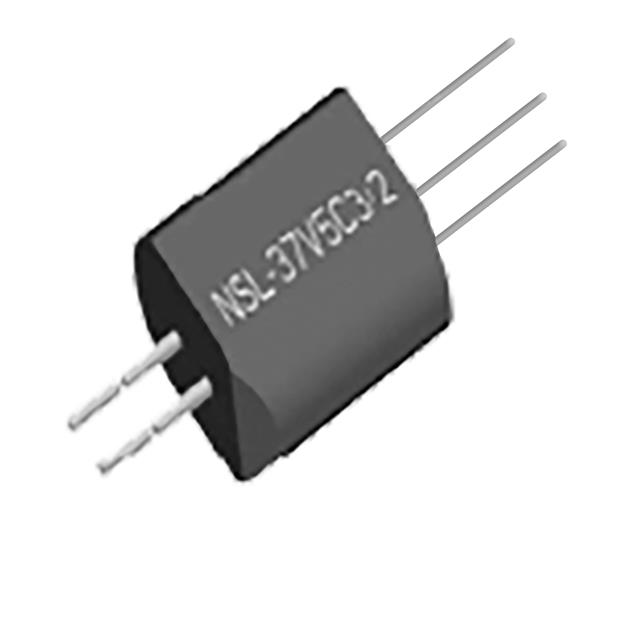

NSL-37V5C3/2
ActiveAdvanced Photonix
PHOTOCELL (CDS) OUTPUT OPTOCOUPL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NSL-37V5C3/2
ActiveAdvanced Photonix
PHOTOCELL (CDS) OUTPUT OPTOCOUPL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NSL-37V5C3/2 |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 40 mA |
| Input Type | DC |
| Mounting Type | Surface Mount |
| Number of Channels | 1 |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 5-SMD, Flat Leads |
| Rise / Fall Time (Typ) | - |
| Rise / Fall Time (Typ) | 3 ms |
| Type | Photocell Optocoupler |
| Voltage - Forward (Vf) (Typ) | 1.2 V |
| Voltage - Isolation | 2500 Vrms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.82 | |
| 10 | $ 7.12 | |||
| 500 | $ 5.15 | |||
| 1000 | $ 4.87 | |||
Description
General part information
NSL-32 Series
Optoisolator Photocell Optocoupler 2500Vrms 1 Channel
