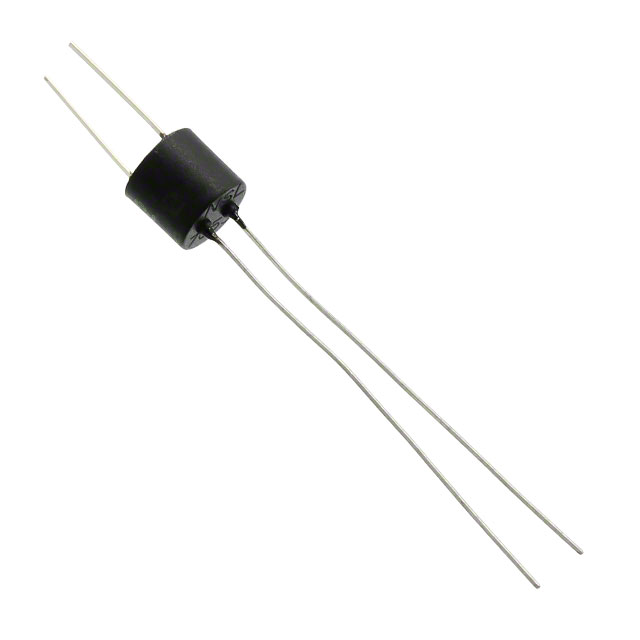

NSL-32H-103

Obsolete

Advanced Photonix

OPTOISO PHOTOCELL OPTOCOUPLER

Search across all available documentation for this part.

Obsolete

Advanced Photonix

OPTOISO PHOTOCELL OPTOCOUPLER

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Type	Number of Channels	Current - DC Forward (If) (Max) [Max]	Voltage - Supply [Max]	Mounting Type	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Voltage - Forward (Vf) (Typ)	Rise / Fall Time (Typ)	Rise / Fall Time (Typ)	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Input Type
Advanced Photonix NSL-32H-103	Module	Photocell Optocoupler	1	40 mA	60 V	Through Hole
Advanced Photonix NSL-32SR2	Module	Photocell Optocoupler	1	25 mA	60 V	Free Hanging	80 ms	5 ms
Advanced Photonix NSL-37V5C3/2	5-SMD Flat Leads	Photocell Optocoupler	1	40 mA		Surface Mount			1.2 V	-	3 ms	-40 °C	75 ░C	2500 Vrms	DC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Optoisolator Photocell Optocoupler 1 Channel
