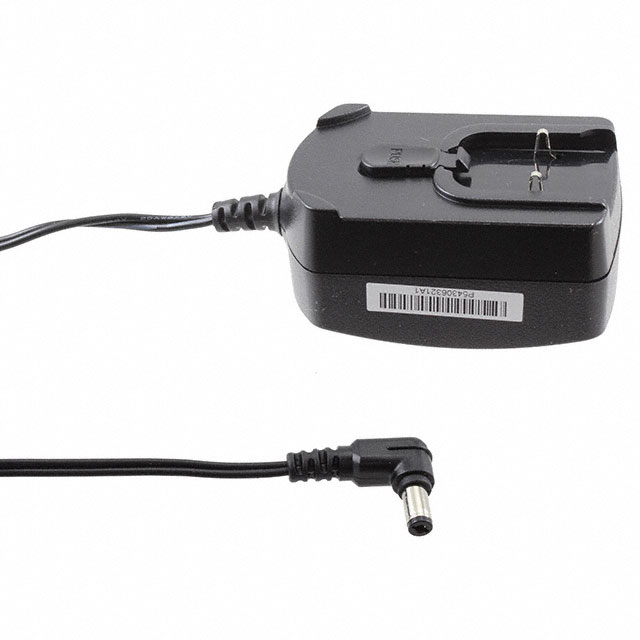

PSAC12R-090-R-CR1

Active

Phihong USA

AC/DC WALL MOUNT ADAPTER 9V 12W

Deep-Dive with AI

Search across all available documentation for this part.

PSAC12R-090-R-CR1

Active

Phihong USA

AC/DC WALL MOUNT ADAPTER 9V 12W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PSAC12R-090-R-CR1

Applications	ITE (Commercial)
Approval Agency	AS/NZS, IEC, cULus
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	1.33 A
Efficiency	Level VI, CoC Tier 1
Form	Wall Mount (Class II)
Input Connector	Multi-Blade
Input Type	Multi-Blade (Sold Separately)
No Load Power Consumption	100 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug R/A
Output Connector [diameter]	2.1 mm, 5.5 mm
Output Connector [x]	10 mm
Polarization	Positive Center
Power (Watts)	12 W
Region Utilized	International
Size / Dimension [x]	71.7 mm
Size / Dimension [x]	2.82 "
Size / Dimension [y]	50 mm
Size / Dimension [y]	1.97 "
Size / Dimension [z]	1.31 "
Size / Dimension [z]	33.3 mm
Standard Number	60950-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	9 V
Weight	0.333 lb
Weight	151.05 g

PSAC12R Series

Part	Output Connector [z]	Output Connector [diameter]	Output Connector	Input Connector	Voltage - Input [Min]	Voltage - Input [Max]	Applications	Input Type	Cord Length	Cord Length	Current - Output (Max) [Max]	Region Utilized	Form	Efficiency	Power (Watts)	Voltage - Output	Approval Agency	Polarization	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Operating Temperature [Max]	Weight	Weight	No Load Power Consumption	Standard Number	Output Connector [x]
Phihong USA PSAC12R-060	10 mm	2.1 mm 5.5 mm	Barrel Plug	Multi-Blade	90 VAC	264 VAC	ITE (Commercial)	Multi-Blade (Sold Separately)	1.5 m	59 in	2 A	International	Wall Mount (Class II)	CoC Tier 1 Level VI	12 W	6 V	C-Tick CB CE cULus	Positive Center	1.31 "	71.7 mm	2.82 "	33.3 mm	50 mm	1.97 "	40 °C	0.333 lb	151.05 g	100 mW
Phihong USA PSAC12R-240	10 mm	2.1 mm 5.5 mm	Barrel Plug	Multi-Blade	90 VAC	264 VAC	ITE (Commercial)	Multi-Blade (Sold Separately)	1.5 m	59 in	500 mA	International	Wall Mount (Class II)	CoC Tier 1 Level VI	12 W	24 V	C-Tick CB CE cULus	Positive Center	1.31 "	71.7 mm	2.82 "	33.3 mm	50 mm	1.97 "	40 °C	0.333 lb	151.05 g	100 mW
Phihong USA PSAC12R-120-R-CR1		2.1 mm 5.5 mm	Barrel Plug R/A	Multi-Blade	90 VAC	264 VAC	ITE (Commercial)	Multi-Blade (Sold Separately)	1.5 m	59 in	1 A	International	Wall Mount (Class II)	CoC Tier 1 Level VI	12 W	12 V	AS/NZS cULus IEC PSE	Positive Center	1.31 "	71.7 mm	2.82 "	33.3 mm	50 mm	1.97 "	40 °C	0.333 lb	151.05 g	100 mW	55022 60950-1	10 mm
Phihong USA PSAC12R-090-R-CR1		2.1 mm 5.5 mm	Barrel Plug R/A	Multi-Blade	90 VAC	264 VAC	ITE (Commercial)	Multi-Blade (Sold Separately)	1.5 m	59 in	1.33 A	International	Wall Mount (Class II)	CoC Tier 1 Level VI	12 W	9 V	AS/NZS cULus IEC	Positive Center	1.31 "	71.7 mm	2.82 "	33.3 mm	50 mm	1.97 "	40 °C	0.333 lb	151.05 g	100 mW	60950-1	10 mm
Phihong USA PSAC12R-120	10 mm	2.1 mm 5.5 mm	Barrel Plug	Multi-Blade	90 VAC	264 VAC	ITE (Commercial)	Multi-Blade (Sold Separately)	1.5 m	59 in	1 A	International	Wall Mount (Class II)	CoC Tier 1 Level VI	12 W	12 V	C-Tick CB CE cULus	Positive Center	1.31 "	71.7 mm	2.82 "	33.3 mm	50 mm	1.97 "	40 °C	0.333 lb	151.05 g	100 mW
Phihong USA PSAC12R-075	10 mm	2.1 mm 5.5 mm	Barrel Plug	Multi-Blade	90 VAC	264 VAC	ITE (Commercial)	Multi-Blade (Sold Separately)	1.5 m	59 in	1.6 A	International	Wall Mount (Class II)	CoC Tier 1 Level VI	12 W	7.5 V	C-Tick CB CE cULus	Positive Center	1.31 "	71.7 mm	2.82 "	33.3 mm	50 mm	1.97 "	40 °C	0.333 lb	151.05 g	100 mW
Phihong USA PSAC12R-480	10 mm	2.1 mm 5.5 mm	Barrel Plug	Multi-Blade	90 VAC	264 VAC	ITE (Commercial)	Multi-Blade (Sold Separately)	1.5 m	59 in	250 mA	International	Wall Mount (Class II)	CoC Tier 1 Level VI	12 W	48 V	C-Tick CB CE cULus	Positive Center	1.31 "	71.7 mm	2.82 "	33.3 mm	50 mm	1.97 "	40 °C	0.333 lb	151.05 g	100 mW
Phihong USA PSAC12R-050	10 mm	2.1 mm 5.5 mm	Barrel Plug	Multi-Blade	90 VAC	264 VAC	ITE (Commercial)	Multi-Blade (Sold Separately)	1.5 m	59 in	2.4 A	International	Wall Mount (Class II)	CoC Tier 1 Level VI	12 W	5 V	C-Tick CB CE cULus	Positive Center	1.31 "	71.7 mm	2.82 "	33.3 mm	50 mm	1.97 "	40 °C	0.333 lb	151.05 g	100 mW
Phihong USA PSAC12R-050-R-CR1		2.1 mm 5.5 mm	Barrel Plug R/A	Multi-Blade	90 VAC	264 VAC	ITE (Commercial)	Multi-Blade (Sold Separately)	1.5 m	59 in	2.4 A	International	Wall Mount (Class II)	CoC Tier 1 Level VI	12 W	5 V	AS/NZS CCC cULus IEC PSE	Positive Center	1.31 "	71.7 mm	2.82 "	33.3 mm	50 mm	1.97 "	40 °C	0.333 lb	151.05 g	100 mW	55022 60950-1 GB/T9254-2008 GB17625.1-2012 GB4943.1-2011	10 mm
Phihong USA PSAC12R-090	10 mm	2.1 mm 5.5 mm	Barrel Plug	Multi-Blade	90 VAC	264 VAC	ITE (Commercial)	Multi-Blade (Sold Separately)	1.5 m	59 in	1.33 A	International	Wall Mount (Class II)	CoC Tier 1 Level VI	12 W	9 V	C-Tick CB CE cULus	Positive Center	1.31 "	71.7 mm	2.82 "	33.3 mm	50 mm	1.97 "	40 °C	0.333 lb	151.05 g	100 mW

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 15.99
		5	$ 15.56
		10	$ 14.70
		25	$ 13.83
		50	$ 12.97
		100	$ 12.10
		250	$ 11.67
		500	$ 11.50

Description

General part information

PSAC12R Series

9V 12 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Sold Separately) Input
