RB55P14C16G

Active

Serpac

BOX PLASTIC GRAY/CLR

Search across all available documentation for this part.

Active

Serpac

BOX PLASTIC GRAY/CLR

Technical Specifications

Parameters and characteristics for this part

Specification	RB55P14C16G

Area (L x W)	22.3 in˛
Area (L x W)	144 cm˛
Color	Gray, Clear Cover/Door
Container Type	Box
Design	Cover Included
Height [z]	2.95 "
Height [z]	74.93 mm
Material	Plastic, Polycarbonate
Material Flammability Rating	UL94 V-0
Ratings	IP67, NEMA 4
Thickness	0.12 in
Thickness	3.05 mm

Part	Area (L x W)	Area (L x W)	Container Type	Material Flammability Rating	Height [z]	Height [z]	Ratings	Material	Color	Design	Thickness	Thickness	Area (L x W)	Height [diameter]	Height [diameter]
Serpac RB55P14C10C	144 cm²	22.3 in²	Box	UL94 V-0	60.45 mm	2.38 in	IP67 NEMA 4	Plastic Polycarbonate	Clear	Cover Included	0.12 in	3.05 mm
Serpac RB55P14C16G	22.3 in˛		Box	UL94 V-0	74.93 mm	2.95 "	IP67 NEMA 4	Plastic Polycarbonate	Clear Cover/Door Gray	Cover Included	0.12 in	3.05 mm	144 cm˛
Serpac RB55P14C28G	144 cm²	22.3 in²	Box	UL94 V-0			IP67 NEMA 4	Plastic Polycarbonate	Clear Cover/Door Gray	Cover Included	0.12 in	3.05 mm		104.9 mm	4.13 in
Serpac RB55P14C10G	144 cm²	22.3 in²	Box	UL94 V-0	60.45 mm	2.38 in	IP67 NEMA 4	Plastic Polycarbonate	Clear Cover/Door Gray	Cover Included	0.12 in	3.05 mm
Serpac RB55P14C28B	144 cm²	22.3 in²	Box	UL94 V-0			IP67 NEMA 4	Plastic Polycarbonate	Black Clear Cover/Door	Cover Included	0.12 in	3.05 mm		104.9 mm	4.13 in
Serpac RB55P14C16C	22.3 in˛		Box	UL94 V-0	74.93 mm	2.95 "	IP67 NEMA 4	Plastic Polycarbonate	Clear	Cover Included	0.12 in	3.05 mm	144 cm˛
Serpac RB55P14C16B	144 cm²	22.3 in²	Box	UL94 V-0	74.93 mm	2.95 "	IP67 NEMA 4	Plastic Polycarbonate	Black Clear Cover/Door	Cover Included	0.12 in	3.05 mm
Serpac RB55P14C28C	144 cm²	22.3 in²	Box	UL94 V-0			IP67 NEMA 4	Plastic Polycarbonate	Clear	Cover Included	0.12 in	3.05 mm		104.9 mm	4.13 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 22.77

General part information

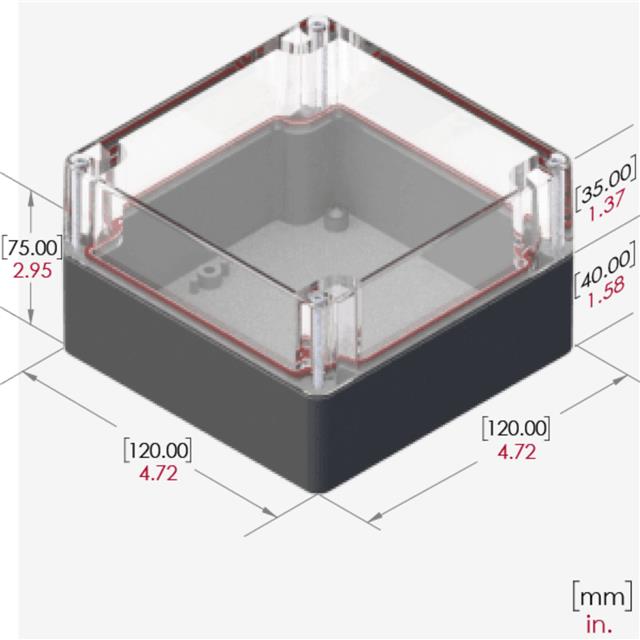

Box Plastic, Polycarbonate Gray, Clear Cover/Door Cover Included X 2.950" (74.93mm)

Technical documentation and resources

No documents available
