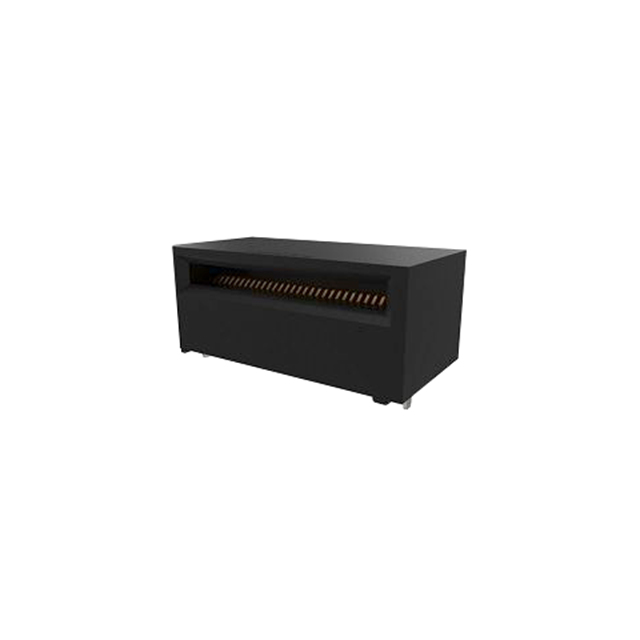

ME1005610211081
ActiveAmphenol ICC (FCI)
CONN EDGE DUAL FMALE 56POS 0.024
Deep-Dive with AI
Search across all available documentation for this part.
ME1005610211081
ActiveAmphenol ICC (FCI)
CONN EDGE DUAL FMALE 56POS 0.024
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ME1005610211081 |
|---|---|
| Card Thickness | 0.062 in |
| Card Thickness | 1.57 mm |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | GXT™, Gold |
| Contact Finish Thickness | 15 µin |
| Contact Finish Thickness | 0.38 µm |
| Contact Material | Copper Alloy |
| Features | Board Guide |
| Gender | Female |
| Material - Insulation | Thermoplastic |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 56 |
| Number of Positions/Bay/Row [custom] | 28 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.6 mm |
| Pitch [x] | 0.024 in |
| Read Out | Dual |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.94 | |
| 10 | $ 4.20 | |||
| 25 | $ 3.94 | |||
| 50 | $ 3.75 | |||
| 100 | $ 3.57 | |||
| Digi-Reel® | 1 | $ 4.94 | ||
| 10 | $ 4.20 | |||
| 25 | $ 3.94 | |||
| 50 | $ 3.75 | |||
| 100 | $ 3.57 | |||
| Tape & Reel (TR) | 300 | $ 3.30 | ||
| 600 | $ 3.15 | |||
| 900 | $ 3.06 | |||
| 1500 | $ 2.95 | |||
| 2100 | $ 2.88 | |||
| 3000 | $ 2.81 | |||
Description
General part information
ME100 Series
56 Position Female Connector Non Specified - Dual Edge Gold, GXT™ 0.024" (0.60mm) Black
