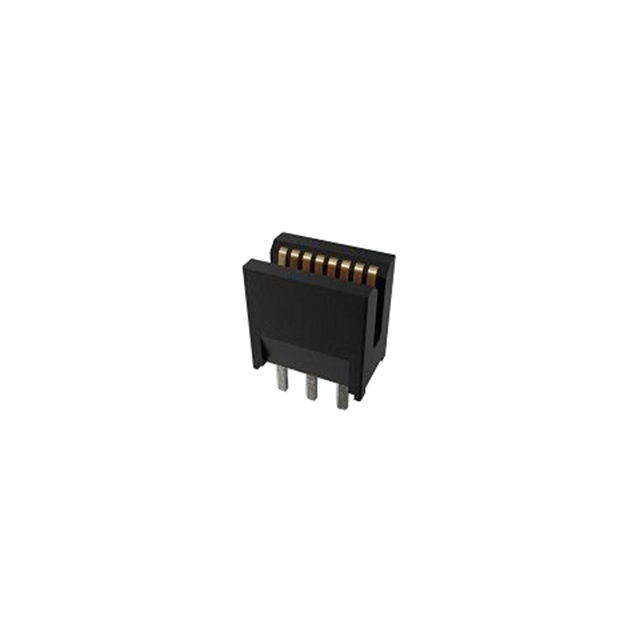

ME10000101P1011

Active

Amphenol ICC (FCI)

CONN EDGE DUAL FMALE 2POS GOLD

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN EDGE DUAL FMALE 2POS GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	ME10000101P1011

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Features	Open Card Slot
Gender	Female
Material - Insulation	Thermoplastic
Mounting Type	Through Hole
Number of Positions	2
Number of Positions/Bay/Row [custom]	1
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Read Out	Dual
Termination	Solder

Part	Card Type	Card Thickness	Card Thickness	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Number of Positions/Bay/Row [custom]	Features	Termination	Color	Number of Rows	Material - Insulation	Contact Material	Read Out	Contact Finish Thickness	Contact Finish Thickness	Gender	Contact Finish	Pitch [x]	Pitch [x]
Amphenol ICC (FCI) ME10000101P1011	Non Specified - Dual Edge	0.062 in	1.57 mm	Through Hole	85 °C	-40 °C	2	1	Open Card Slot	Solder	Black	2	Thermoplastic	Copper Alloy	Dual	0.76 Ám	30 Áin	Female	Gold
Amphenol ICC (FCI) ME10000401P0011	Non Specified - Dual Edge	0.062 in	1.57 mm	Through Hole	85 °C	-40 °C	4	2	Open Card Slot	Solder	Black	2	Thermoplastic	Copper Alloy	Dual	0.76 Ám	30 Áin	Female	Gold
Amphenol ICC (FCI) ME1005610211081	Non Specified - Dual Edge	0.062 in	1.57 mm	Surface Mount Right Angle	85 °C	-40 °C	56	28	Board Guide	Solder	Black	2	Thermoplastic	Copper Alloy	Dual	0.38 µm	15 µin	Female	Gold GXT™	0.6 mm	0.024 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 (Power) Position Female Connector Non Specified - Dual Edge Gold Black
