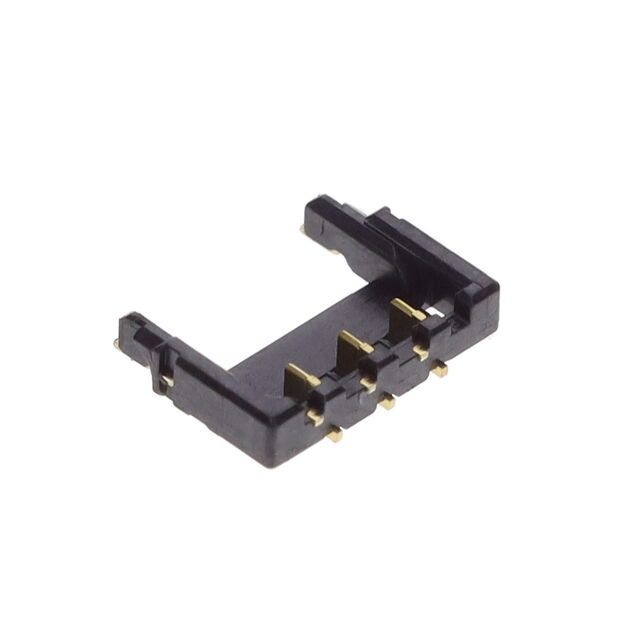

DF65-3P-1.7V(78)

Active

Hirose Electric USA, Inc.

CONN HEADER SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DF65-3P-1.7V(78)

Active

Hirose Electric USA, Inc.

CONN HEADER SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF65-3P-1.7V(78)

Connector Type	Header
Contact Finish - Mating	Gold
Contact Material	Copper
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	1.65 mm
Insulation Height	0.065 "
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.067 in
Pitch - Mating	1.7 mm
Shrouding	Shrouded - 3 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	50 VAC

DF65 Series

Part	Insulation Height	Insulation Height	Features	Shrouding	Insulation Color	Number of Rows	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Material Flammability Rating	Number of Positions	Connector Type	Contact Material	Number of Positions Loaded	Insulation Material	Style	Mounting Type	Contact Type	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Termination	Voltage Rating	Current Rating (Amps)	Contact Finish - Mating	Contact Termination	Pitch [x]	Pitch [x]	Color	Note	Type	Contact Finish	Wire Gauge [Min]	Wire Gauge [Max]	Pin or Socket	Contact Finish Thickness	Contact Finish Thickness
Hirose Electric USA, Inc. DF65-4P-1.7V(21)	1.65 mm	0.065 "	Solder Retention	Shrouded - 3 Wall	Black	1	0.067 in	1.7 mm	Tin	UL94 V-0	4	Header	Brass	All	Liquid Crystal Polymer (LCP)	Board to Cable/Wire	Surface Mount	Male Blade	Rectangular	-40 °C	105 ░C	Latch Lock	Solder
Hirose Electric USA, Inc. DF65-5P-1.7V(78)	1.65 mm	0.065 "		Shrouded - 3 Wall	Black	1	0.067 in	1.7 mm		UL94 V-0		Header	Copper	All	Liquid Crystal Polymer (LCP)	Board to Board Cable	Surface Mount	Male Pin	Square	-40 °C	105 ░C	Push-Pull	Solder	50 VAC	Varies by Wire Gauge	Gold
Hirose Electric USA, Inc. DF65-4S-1.7C						1					4	Receptacle			Liquid Crystal Polymer (LCP)		Free Hanging (In-Line)	Female Blade Socket		-40 °C	105 ░C	Latch Lock					Crimp	1.7 mm	0.067 in	Beige	Contacts Not Included
Hirose Electric USA, Inc. DF65-3P-1.7V(78)	1.65 mm	0.065 "		Shrouded - 3 Wall	Black	1	0.067 in	1.7 mm		UL94 V-0		Header	Copper	All	Liquid Crystal Polymer (LCP)	Board to Board Cable	Surface Mount	Male Pin	Square	-40 °C	105 ░C	Push-Pull	Solder	50 VAC	Varies by Wire Gauge	Gold
Hirose Electric USA, Inc. DF65-6P-1.7V(78)	1.65 mm	0.065 "		Shrouded - 3 Wall	Black	1	0.067 in	1.7 mm		UL94 V-0	6	Header	Copper	All	Liquid Crystal Polymer (LCP)	Board to Board Cable	Surface Mount	Male Pin	Square	-40 °C	105 ░C	Push-Pull	Solder	50 VAC	Varies by Wire Gauge	Gold
Hirose Electric USA, Inc. DF65-2428SCFA(07)																											Crimp					Stamped	Gold	24 AWG	28 AWG	Socket	10 Áin	0.25 Ám
Hirose Electric USA, Inc. DF65-3P-1.7V(21)	1.65 mm	0.065 "	Solder Retention	Shrouded - 3 Wall	Black	1	0.067 in	1.7 mm	Tin	UL94 V-0		Header	Brass	All	Liquid Crystal Polymer (LCP)	Board to Cable/Wire	Surface Mount	Male Blade	Rectangular	-40 °C	105 ░C	Latch Lock	Solder
Hirose Electric USA, Inc. DF65-7P-1.7V(78)	1.65 mm	0.065 "		Shrouded - 3 Wall	Black	1	0.067 in	1.7 mm		UL94 V-0	7	Header	Copper	All	Liquid Crystal Polymer (LCP)	Board to Board Cable	Surface Mount	Male Pin	Square	-40 °C	105 ░C	Push-Pull	Solder	50 VAC	Varies by Wire Gauge	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.05
		10	$ 0.89
		100	$ 0.80
		500	$ 0.65
		1000	$ 0.58
	Digi-Reel®	1	$ 1.05
		10	$ 0.89
		100	$ 0.80
		500	$ 0.65
		1000	$ 0.58
	Tape & Reel (TR)	4000	$ 0.48
		8000	$ 0.44
		12000	$ 0.43

Description

General part information

DF65 Series

Connector Header Surface Mount 3 position 0.067" (1.70mm)
