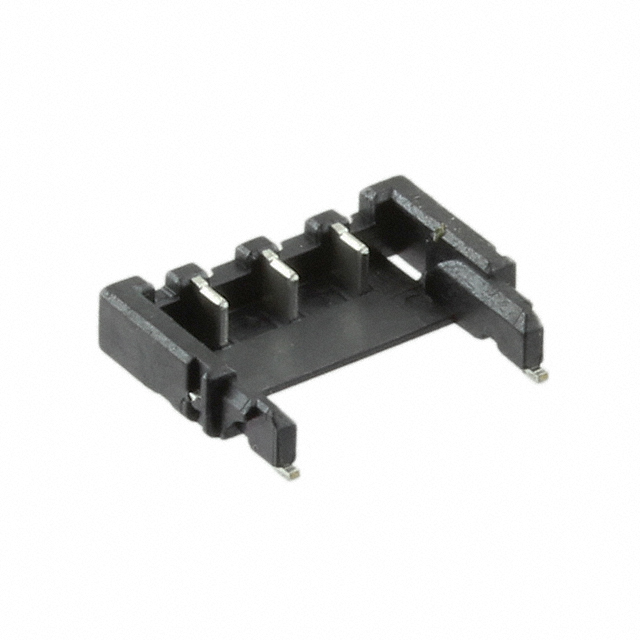

DF65-3P-1.7V(21)

Active

Hirose Electric USA, Inc.

WIRE-TO-BOARD CONNECTOR, DF65 SERIES, SURFACE MOUNT, HEADER, 3, 1.7 MM, TIN PLATED CONTACTS ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDrawing EN DF65-3P-1.7V(21) Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF65-3P-1.7V(21)

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Brass
Contact Shape	Rectangular
Contact Type	Male Blade
Fastening Type	Latch Lock
Features	Solder Retention
Insulation Color	Black
Insulation Height	1.65 mm
Insulation Height	0.065 "
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.067 in
Pitch - Mating	1.7 mm
Shrouding	Shrouded - 3 Wall
Style	Board to Cable/Wire
Termination	Solder

DF65 Series

Part	Insulation Height	Insulation Height	Features	Shrouding	Insulation Color	Number of Rows	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Material Flammability Rating	Number of Positions	Connector Type	Contact Material	Number of Positions Loaded	Insulation Material	Style	Mounting Type	Contact Type	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Termination	Voltage Rating	Current Rating (Amps)	Contact Finish - Mating	Contact Termination	Pitch [x]	Pitch [x]	Color	Note	Type	Contact Finish	Wire Gauge [Min]	Wire Gauge [Max]	Pin or Socket	Contact Finish Thickness	Contact Finish Thickness
Hirose Electric USA, Inc. DF65-4P-1.7V(21)	1.65 mm	0.065 "	Solder Retention	Shrouded - 3 Wall	Black	1	0.067 in	1.7 mm	Tin	UL94 V-0	4	Header	Brass	All	Liquid Crystal Polymer (LCP)	Board to Cable/Wire	Surface Mount	Male Blade	Rectangular	-40 °C	105 ░C	Latch Lock	Solder
Hirose Electric USA, Inc. DF65-5P-1.7V(78)	1.65 mm	0.065 "		Shrouded - 3 Wall	Black	1	0.067 in	1.7 mm		UL94 V-0		Header	Copper	All	Liquid Crystal Polymer (LCP)	Board to Board Cable	Surface Mount	Male Pin	Square	-40 °C	105 ░C	Push-Pull	Solder	50 VAC	Varies by Wire Gauge	Gold
Hirose Electric USA, Inc. DF65-4S-1.7C						1					4	Receptacle			Liquid Crystal Polymer (LCP)		Free Hanging (In-Line)	Female Blade Socket		-40 °C	105 ░C	Latch Lock					Crimp	1.7 mm	0.067 in	Beige	Contacts Not Included
Hirose Electric USA, Inc. DF65-3P-1.7V(78)	1.65 mm	0.065 "		Shrouded - 3 Wall	Black	1	0.067 in	1.7 mm		UL94 V-0		Header	Copper	All	Liquid Crystal Polymer (LCP)	Board to Board Cable	Surface Mount	Male Pin	Square	-40 °C	105 ░C	Push-Pull	Solder	50 VAC	Varies by Wire Gauge	Gold
Hirose Electric USA, Inc. DF65-6P-1.7V(78)	1.65 mm	0.065 "		Shrouded - 3 Wall	Black	1	0.067 in	1.7 mm		UL94 V-0	6	Header	Copper	All	Liquid Crystal Polymer (LCP)	Board to Board Cable	Surface Mount	Male Pin	Square	-40 °C	105 ░C	Push-Pull	Solder	50 VAC	Varies by Wire Gauge	Gold
Hirose Electric USA, Inc. DF65-2428SCFA(07)																											Crimp					Stamped	Gold	24 AWG	28 AWG	Socket	10 Áin	0.25 Ám
Hirose Electric USA, Inc. DF65-3P-1.7V(21)	1.65 mm	0.065 "	Solder Retention	Shrouded - 3 Wall	Black	1	0.067 in	1.7 mm	Tin	UL94 V-0		Header	Brass	All	Liquid Crystal Polymer (LCP)	Board to Cable/Wire	Surface Mount	Male Blade	Rectangular	-40 °C	105 ░C	Latch Lock	Solder
Hirose Electric USA, Inc. DF65-7P-1.7V(78)	1.65 mm	0.065 "		Shrouded - 3 Wall	Black	1	0.067 in	1.7 mm		UL94 V-0	7	Header	Copper	All	Liquid Crystal Polymer (LCP)	Board to Board Cable	Surface Mount	Male Pin	Square	-40 °C	105 ░C	Push-Pull	Solder	50 VAC	Varies by Wire Gauge	Gold
