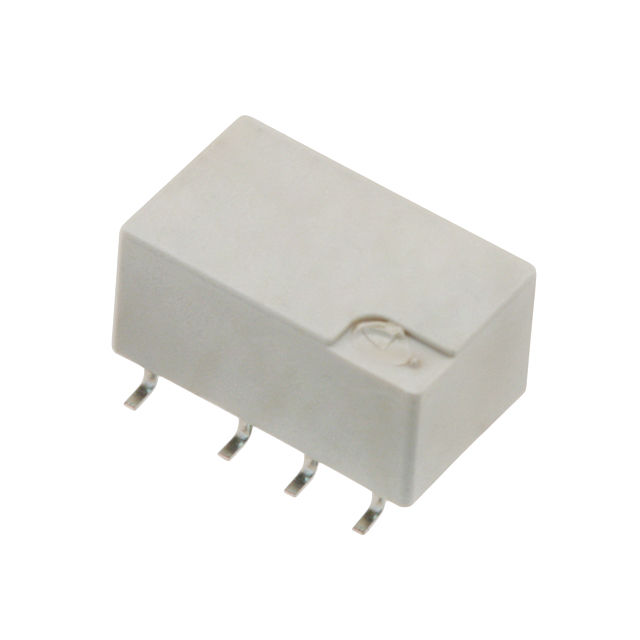

4-1462039-1

Active

TE Connectivity Potter & Brumfield Relays

RELAY TELECOM DPDT 2A 4.5V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

4-1462039-1

Active

TE Connectivity Potter & Brumfield Relays

RELAY TELECOM DPDT 2A 4.5V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4-1462039-1

Coil Current	22.2 mA
Coil Resistance	203 Ohms
Coil Type	Latching, Single Coil
Coil Voltage	4.5 VDC
Contact Form	DPDT (2 Form C)
Contact Material	Palladium (Pd), Gold (Au), Ruthenium (Ru)
Contact Rating (Current)	2 A
Load - Max Switching	440 W, 500 VA
Mounting Type	Surface Mount
Must Operate Voltage	3.38 VDC
Operate Time	3 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	Telecom
Release Time	3 ms
Seal Rating	Sealed - Hermetically
Switching Voltage	250 VAC, 220 VDC
Termination Style	Gull Wing

1462039 Series

Part	Switching Voltage	Termination Style	Contact Rating (Current)	Coil Voltage	Coil Type	Relay Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Form	Must Operate Voltage	Release Time	Must Release Voltage	Coil Current	Contact Material	Coil Resistance	Mounting Type	Operate Time	Seal Rating	Load - Max Switching	Approval Agency
TE Connectivity Potter & Brumfield Relays 1462039-4	220 VDC 250 VAC	Gull Wing	2 A	5 VDC	Non Latching	Telecom	85 °C	-40 °C	DPDT (2 Form C)	4 VDC	3 ms	0.5 VDC	20 mA	Gold (Au) Palladium (Pd) Ruthenium (Ru)	234 Ohms	Surface Mount	3 ms	Sealed - Hermetically	440 W 500 VA
TE Connectivity Potter & Brumfield Relays 1-1462039-6	220 VDC 250 VAC	PC Pin	5 A	4.5 VDC	Latching Single Coil	Telecom	85 °C	-40 °C	DPDT (2 Form C)	3.38 VDC	3 ms	0.45 VDC	22.2 mA	Gold (Au) Silver Nickel (AgNi)	203 Ohms	Surface Mount	3 ms	Sealed - Hermetically	60 W 62.5 VA	UR VDE
TE Connectivity Potter & Brumfield Relays 7-1462039-0	220 VDC 250 VAC	Gull Wing	5 A	12 VDC	Non Latching	Telecom	85 °C	-40 °C	DPDT (2 Form C)	9 VDC	3 ms	1.2 VDC	11.7 mA	Gold (Au) Silver Nickel (AgNi)	1030 Ohms	Surface Mount	3 ms	Sealed - Hermetically	60 W 62.5 VA	UR VDE
TE Connectivity Potter & Brumfield Relays 1-1462039-8	220 VDC 250 VAC	Gull Wing	5 A	12 VDC	Non Latching	Telecom	85 °C	-40 °C	DPDT (2 Form C)	9 VDC	3 ms	1.2 VDC	11.6 mA	Gold (Au) Silver Nickel (AgNi)	1030 Ohms	Surface Mount	3 ms	Sealed - Hermetically	60 W 62.5 VA	UR VDE
TE Connectivity Potter & Brumfield Relays 3-1462039-4	220 VDC 250 VAC	J Lead	2 A	12 VDC	Non Latching	Telecom	85 °C	-40 °C	DPDT (2 Form C)	9 VDC	3 ms	1.2 VDC	11.7 mA	Gold (Au) Palladium (Pd) Ruthenium (Ru)	1.029 kOhms	Surface Mount	3 ms	Sealed - Hermetically	440 W 500 VA
TE Connectivity Potter & Brumfield Relays 3-1462039-8	220 VDC 250 VAC	PC Pin	5 A	12 VDC	Non Latching	Telecom	85 °C	-40 °C	DPDT (2 Form C)	9 VDC	3 ms	1.2 VDC	11.7 mA	Gold (Au) Silver Nickel (AgNi)	1030 Ohms	Through Hole	3 ms	Sealed - Hermetically	60 W 62.5 VA	UR VDE
TE Connectivity Potter & Brumfield Relays 5-1462039-8	220 VDC 250 VAC	PC Pin	2 A	4.5 VDC	Non Latching	Telecom	85 °C	-40 °C	DPDT (2 Form C)	3.38 VDC	5 ms	0.45 VDC	31 mA	Gold (Au) Palladium (Pd) Ruthenium (Ru)	145 Ohms	Through Hole	3 ms	Sealed - Hermetically	440 W 500 VA
TE Connectivity Potter & Brumfield Relays 7-1462039-2	220 VDC 250 VAC	PC Pin	5 A	24 VDC	Non Latching	Telecom	85 °C	-40 °C	DPDT (2 Form C)	18 VDC	3 ms	2.4 VDC	8.3 mA	Gold (Au) Silver Nickel (AgNi)	2.88 kOhms	Through Hole	3 ms	Sealed - Hermetically	60 W 62.5 VA	UR VDE
TE Connectivity Potter & Brumfield Relays 5-1462039-6	220 VDC 250 VAC	Gull Wing	2 A	12 VDC	Non Latching	Telecom	85 °C	-40 °C	DPDT (2 Form C)	9 VDC	3 ms	1.2 VDC	11.7 mA	Gold (Au) Palladium (Pd) Ruthenium (Ru)	1030 Ohms	Surface Mount	3 ms	Sealed - Hermetically	440 W 500 VA
TE Connectivity Potter & Brumfield Relays 4-1462039-1	220 VDC 250 VAC	Gull Wing	2 A	4.5 VDC	Latching Single Coil	Telecom	85 °C	-40 °C	DPDT (2 Form C)	3.38 VDC	3 ms		22.2 mA	Gold (Au) Palladium (Pd) Ruthenium (Ru)	203 Ohms	Surface Mount	3 ms	Sealed - Hermetically	440 W 500 VA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 6.25
		10	$ 5.86
		25	$ 5.21
		50	$ 4.95
		100	$ 4.69
		250	$ 4.17
		500	$ 3.91
	Digi-Reel®	1	$ 6.25
		10	$ 5.86
		25	$ 5.21
		50	$ 4.95
		100	$ 4.69
		250	$ 4.17
		500	$ 3.91
	Tape & Reel (TR)	1000	$ 3.54
		2000	$ 3.40
		3000	$ 3.32

Description

General part information

1462039 Series

Telecom Relay DPDT (2 Form C) Surface Mount
