7-1462039-2

Active

TE Connectivity Potter & Brumfield Relays

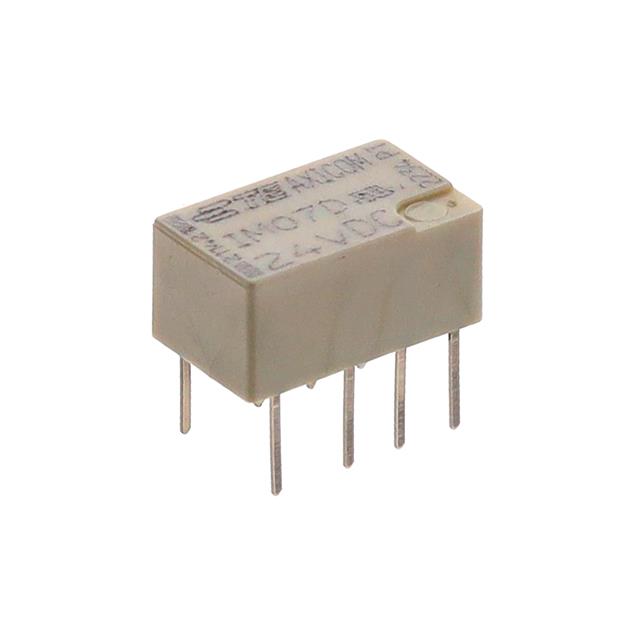

IM07DTS=IM RELAY 200MW 24V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	7-1462039-2

Approval Agency	VDE, UR
Coil Current	8.3 mA
Coil Resistance	2.88 kOhms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi), Gold (Au)
Contact Rating (Current)	5 A
Load - Max Switching	60 W, 62.5 VA
Mounting Type	Through Hole
Must Operate Voltage	18 VDC
Must Release Voltage	2.4 VDC
Operate Time	3 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	Telecom
Release Time	3 ms
Seal Rating	Sealed - Hermetically
Switching Voltage	250 VAC, 220 VDC
Termination Style	PC Pin

1462039 Series

Part	Switching Voltage	Termination Style	Contact Rating (Current)	Coil Voltage	Coil Type	Relay Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Form	Must Operate Voltage	Release Time	Must Release Voltage	Coil Current	Contact Material	Coil Resistance	Mounting Type	Operate Time	Seal Rating	Load - Max Switching	Approval Agency
TE Connectivity Potter & Brumfield Relays 1462039-4	220 VDC 250 VAC	Gull Wing	2 A	5 VDC	Non Latching	Telecom	85 °C	-40 °C	DPDT (2 Form C)	4 VDC	3 ms	0.5 VDC	20 mA	Gold (Au) Palladium (Pd) Ruthenium (Ru)	234 Ohms	Surface Mount	3 ms	Sealed - Hermetically	440 W 500 VA
TE Connectivity Potter & Brumfield Relays 1-1462039-6	220 VDC 250 VAC	PC Pin	5 A	4.5 VDC	Latching Single Coil	Telecom	85 °C	-40 °C	DPDT (2 Form C)	3.38 VDC	3 ms	0.45 VDC	22.2 mA	Gold (Au) Silver Nickel (AgNi)	203 Ohms	Surface Mount	3 ms	Sealed - Hermetically	60 W 62.5 VA	UR VDE
TE Connectivity Potter & Brumfield Relays 7-1462039-0	220 VDC 250 VAC	Gull Wing	5 A	12 VDC	Non Latching	Telecom	85 °C	-40 °C	DPDT (2 Form C)	9 VDC	3 ms	1.2 VDC	11.7 mA	Gold (Au) Silver Nickel (AgNi)	1030 Ohms	Surface Mount	3 ms	Sealed - Hermetically	60 W 62.5 VA	UR VDE
TE Connectivity Potter & Brumfield Relays 1-1462039-8	220 VDC 250 VAC	Gull Wing	5 A	12 VDC	Non Latching	Telecom	85 °C	-40 °C	DPDT (2 Form C)	9 VDC	3 ms	1.2 VDC	11.6 mA	Gold (Au) Silver Nickel (AgNi)	1030 Ohms	Surface Mount	3 ms	Sealed - Hermetically	60 W 62.5 VA	UR VDE
TE Connectivity Potter & Brumfield Relays 3-1462039-4	220 VDC 250 VAC	J Lead	2 A	12 VDC	Non Latching	Telecom	85 °C	-40 °C	DPDT (2 Form C)	9 VDC	3 ms	1.2 VDC	11.7 mA	Gold (Au) Palladium (Pd) Ruthenium (Ru)	1.029 kOhms	Surface Mount	3 ms	Sealed - Hermetically	440 W 500 VA
TE Connectivity Potter & Brumfield Relays 3-1462039-8	220 VDC 250 VAC	PC Pin	5 A	12 VDC	Non Latching	Telecom	85 °C	-40 °C	DPDT (2 Form C)	9 VDC	3 ms	1.2 VDC	11.7 mA	Gold (Au) Silver Nickel (AgNi)	1030 Ohms	Through Hole	3 ms	Sealed - Hermetically	60 W 62.5 VA	UR VDE
TE Connectivity Potter & Brumfield Relays 5-1462039-8	220 VDC 250 VAC	PC Pin	2 A	4.5 VDC	Non Latching	Telecom	85 °C	-40 °C	DPDT (2 Form C)	3.38 VDC	5 ms	0.45 VDC	31 mA	Gold (Au) Palladium (Pd) Ruthenium (Ru)	145 Ohms	Through Hole	3 ms	Sealed - Hermetically	440 W 500 VA
TE Connectivity Potter & Brumfield Relays 7-1462039-2	220 VDC 250 VAC	PC Pin	5 A	24 VDC	Non Latching	Telecom	85 °C	-40 °C	DPDT (2 Form C)	18 VDC	3 ms	2.4 VDC	8.3 mA	Gold (Au) Silver Nickel (AgNi)	2.88 kOhms	Through Hole	3 ms	Sealed - Hermetically	60 W 62.5 VA	UR VDE
TE Connectivity Potter & Brumfield Relays 5-1462039-6	220 VDC 250 VAC	Gull Wing	2 A	12 VDC	Non Latching	Telecom	85 °C	-40 °C	DPDT (2 Form C)	9 VDC	3 ms	1.2 VDC	11.7 mA	Gold (Au) Palladium (Pd) Ruthenium (Ru)	1030 Ohms	Surface Mount	3 ms	Sealed - Hermetically	440 W 500 VA
TE Connectivity Potter & Brumfield Relays 4-1462039-1	220 VDC 250 VAC	Gull Wing	2 A	4.5 VDC	Latching Single Coil	Telecom	85 °C	-40 °C	DPDT (2 Form C)	3.38 VDC	3 ms		22.2 mA	Gold (Au) Palladium (Pd) Ruthenium (Ru)	203 Ohms	Surface Mount	3 ms	Sealed - Hermetically	440 W 500 VA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 5.38
		10	$ 5.04
		25	$ 4.48
		50	$ 4.26
		100	$ 4.04
		250	$ 3.59
		500	$ 3.36
		1000	$ 3.14

Description

General part information

1462039 Series

Telecom Relay DPDT (2 Form C) 24VDC Coil Through Hole
