ED114/10DS

Active

On Shore Technology Inc.

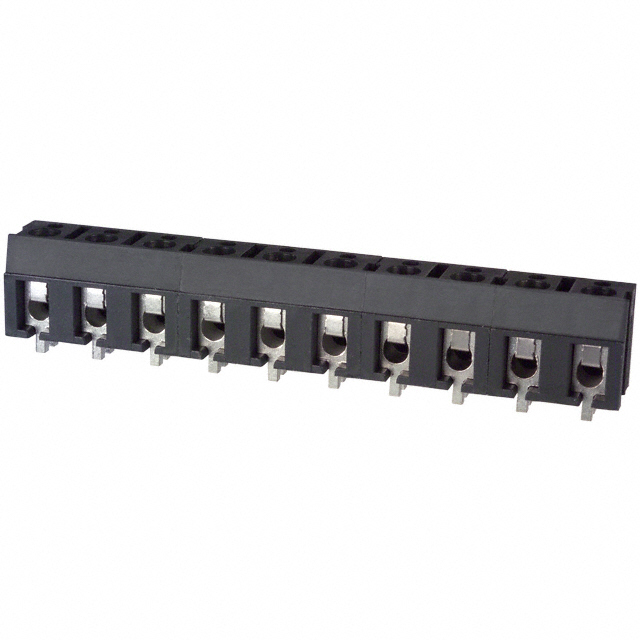

TERM BLK 10P SIDE ENT 7.5MM PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ED114/10DS

Active

On Shore Technology Inc.

TERM BLK 10P SIDE ENT 7.5MM PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ED114/10DS

Clamp Material - Plating	Stainless, Steel
Color	Gray
Contact Material - Plating [custom]	Brass
Current	15 A
Features	Interlocking (Side)
Housing Material	Polyamide (PA), Nylon
Mating Orientation	Horizontal with Board
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Pitch [x]	0.295 in
Pitch [x]	7.5 mm
Positions Per Level	10
Screw Thread	M3
Torque - Screw	0.8 Nm
Torque - Screw	7.1 Lb-In
Voltage	300 V
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	12 AWG
Wire Termination	Screw - Leaf Spring, Wire Guard

ED114 Series

Part	Screw Thread	Color	Voltage	Number of Levels	Mating Orientation	Housing Material	Wire Termination	Operating Temperature [Min]	Operating Temperature [Max]	Current	Clamp Material - Plating	Features	Positions Per Level	Pitch [x]	Pitch [x]	Torque - Screw	Torque - Screw	Wire Gauge [Min]	Wire Gauge [Max]	Contact Material - Plating [custom]	Mounting Type
On Shore Technology Inc. ED114/5DS	M3	Gray	300 V	1	Horizontal with Board	Polyamide (PA) Nylon	Screw - Leaf Spring Wire Guard	-30 ░C	105 ░C	15 A	Stainless Steel	Interlocking (Side)	5	0.295 in	7.5 mm	0.8 Nm	7.1 Lb-In	12 AWG	22 AWG	Brass	Through Hole
On Shore Technology Inc. ED114/2DS	M3	Gray	300 V	1	Horizontal with Board	Polyamide (PA) Nylon	Screw - Leaf Spring Wire Guard	-30 ░C	105 ░C	15 A	Stainless Steel	Interlocking (Side)	2	0.295 in	7.5 mm	0.8 Nm	7.1 Lb-In	12 AWG	22 AWG	Brass	Through Hole
On Shore Technology Inc. ED114/4DS	M3	Gray	300 V	1	Horizontal with Board	Polyamide (PA) Nylon	Screw - Leaf Spring Wire Guard	-30 ░C	105 ░C	15 A	Stainless Steel	Interlocking (Side)	4	0.295 in	7.5 mm	0.8 Nm	7.1 Lb-In	12 AWG	22 AWG	Brass	Through Hole
On Shore Technology Inc. ED114/8DS	M3	Gray	300 V	1	Horizontal with Board	Polyamide (PA) Nylon	Screw - Leaf Spring Wire Guard	-30 ░C	105 ░C	15 A	Stainless Steel	Interlocking (Side)	8	0.295 in	7.5 mm	0.8 Nm	7.1 Lb-In	12 AWG	22 AWG	Brass	Through Hole
On Shore Technology Inc. ED114/10DS	M3	Gray	300 V	1	Horizontal with Board	Polyamide (PA) Nylon	Screw - Leaf Spring Wire Guard	-30 ░C	105 ░C	15 A	Stainless Steel	Interlocking (Side)	10	0.295 in	7.5 mm	0.8 Nm	7.1 Lb-In	12 AWG	22 AWG	Brass	Through Hole
On Shore Technology Inc. ED114/7DS	M3	Gray	300 V	1	Horizontal with Board	Polyamide (PA) Nylon	Screw - Leaf Spring Wire Guard	-30 ░C	105 ░C	15 A	Stainless Steel	Interlocking (Side)	7	0.295 in	7.5 mm	0.8 Nm	7.1 Lb-In	12 AWG	22 AWG	Brass	Through Hole
On Shore Technology Inc. ED114/9DS	M3	Gray	300 V	1	Horizontal with Board	Polyamide (PA) Nylon	Screw - Leaf Spring Wire Guard	-30 ░C	105 ░C	15 A	Stainless Steel	Interlocking (Side)	9	0.295 in	7.5 mm	0.8 Nm	7.1 Lb-In	12 AWG	22 AWG	Brass	Through Hole
On Shore Technology Inc. ED114/6DS	M3	Gray	300 V	1	Horizontal with Board	Polyamide (PA) Nylon	Screw - Leaf Spring Wire Guard	-30 ░C	105 ░C	15 A	Stainless Steel	Interlocking (Side)	6	0.295 in	7.5 mm	0.8 Nm	7.1 Lb-In	12 AWG	22 AWG	Brass	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 4.08

Description

General part information

ED114 Series

10 Position Wire to Board Terminal Block Horizontal with Board 0.295" (7.50mm) Through Hole
