160-000-125R000

Active

MH Connectors

DUST CAP / COVER, DUST COVER, NORCOMP 160 SERIES D SUB 25POS PLUG CONNECTORS

Search across all available documentation for this part.

Active

MH Connectors

DUST CAP / COVER, DUST COVER, NORCOMP 160 SERIES D SUB 25POS PLUG CONNECTORS

Technical Specifications

Parameters and characteristics for this part

Specification	160-000-125R000

Accessory Type	Dust, Cap (Cover)
For Use With/Related Products	D-Sub Connectors, Male

Part	Features	For Use With/Related Products	Accessory Type	Length - Below Head [x]	Length - Below Head [x]	Thread Size	Length - Threaded Portion Below Head [x]	Length - Threaded Portion Below Head [x]	Length - Below Head	Length - Below Head	Length - Threaded Portion Below Head	Length - Threaded Portion Below Head	Length - Threaded Portion Below Head [custom]	Length - Threaded Portion Below Head [custom]
MH Connectors 160-000-016R031	Hardware Included	D-Sub Connectors	Jackscrew Socket	11 mm	0.433 in	4-40 Screw 4-40 Socket	11 mm	0.433 in
MH Connectors 160-000-017R032	Hardware Included	D-Sub Connectors	Jackscrew Socket	13.21 mm	0.52 in	4-40 Screw 4-40 Socket	13.21 mm	0.52 in
MH Connectors 160-000-013R031	Hardware Included	D-Sub Connectors	Jackscrew Socket			4-40 Screw 4-40 Socket	5 mm	0.197 in	5 mm	0.197 in
MH Connectors 160-000-011R031	Hardware Included	D-Sub Connectors	Jackscrew Socket			4-40 Screw 4-40 Socket	15.88 mm	0.625 "	15.88 mm	0.625 in
MH Connectors 160-000-125R000		D-Sub Connectors Male	Cap (Cover) Dust
MH Connectors 160-000-060R031				37.9 mm	1.492 in	M2.6					0.205 in	5.21 mm
MH Connectors 160-000-002R031	Clip	D-Sub Connectors	Jackscrew Slotted	7.47 mm	0.294 in	4-40							3.66 mm	0.144 in
MH Connectors 160-000-125R002	Metal Chain	D-Sub Connectors Male	Cap (Cover) Dust
MH Connectors 160-000-090R031

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

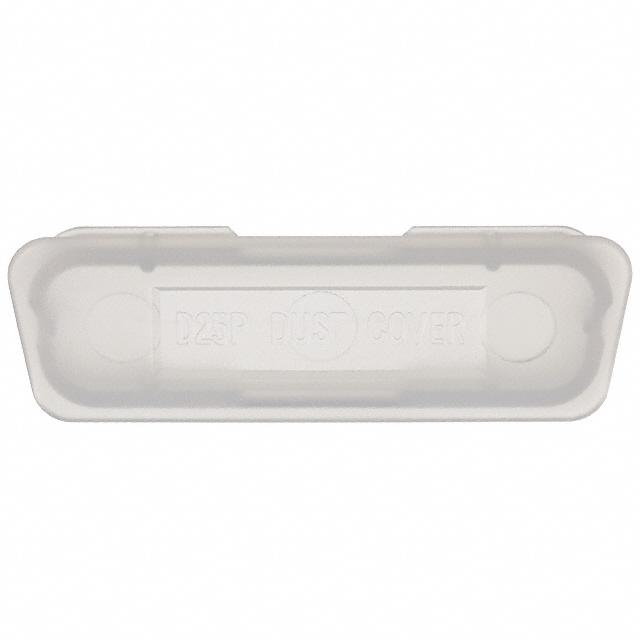

The 160-000-125R000 is a Dust Cover made of PE. It is suitable for 160 series D-sub 25-position plug connectors.
