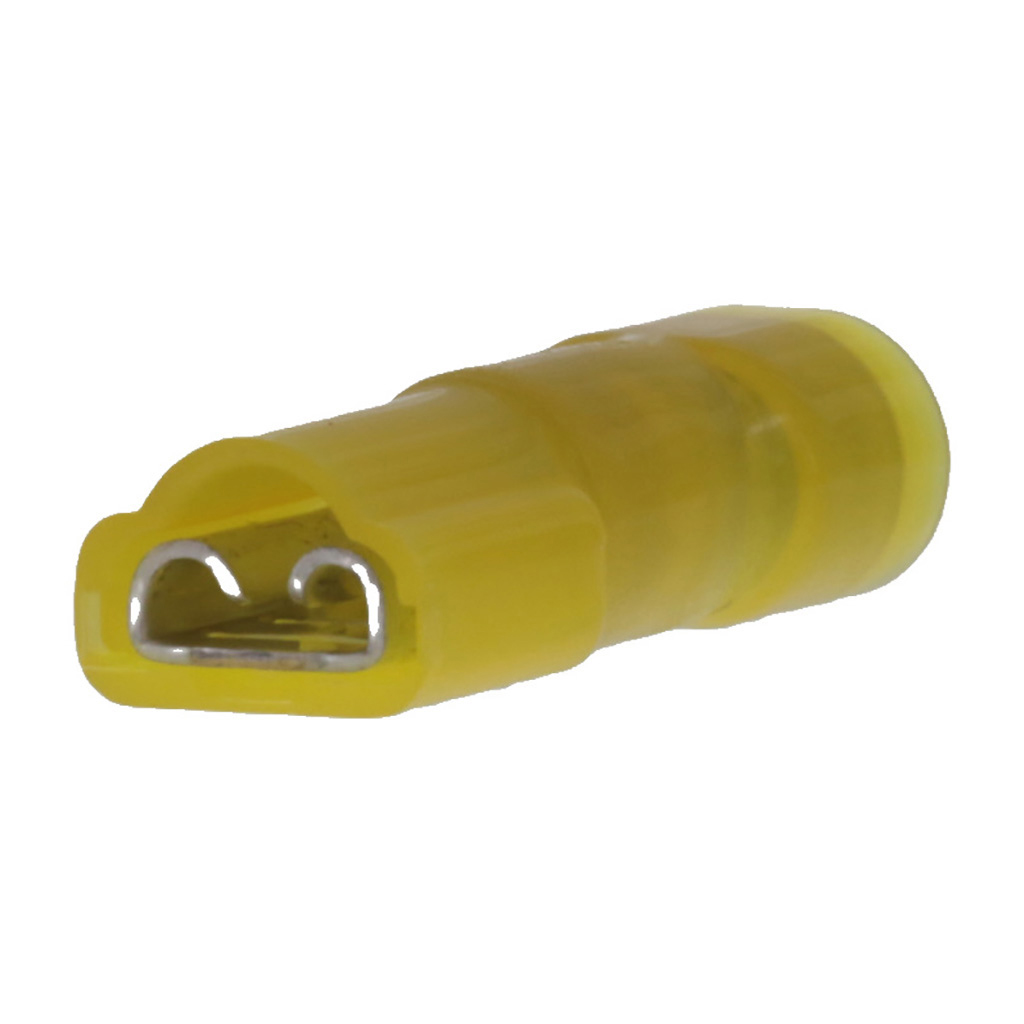

0196001308

Active

Molex

CONN QC RCPT 16-22AWG 0.187

Search across all available documentation for this part.

Active

Molex

CONN QC RCPT 16-22AWG 0.187

Technical Specifications

Parameters and characteristics for this part

Part	Tab Width	Tab Width	Terminal Type	Color	Mounting Type	Wire Gauge [Max]	Wire Gauge [Min]	Wire Gauge	Tab Thickness	Tab Thickness	Length - Overall [x]	Length - Overall [x]	Termination	Contact Finish	Contact Material	Gender	Insulation
Molex 0196001300	6.35 mm	0.25 in	Standard	Yellow	Free Hanging (In-Line)	22 AWG	16 AWG	Wire Combination Range	0.032 in	0.81 mm	0.96 "	24.38 mm	Crimp	Tin	Brass	Female	Fully Insulated
Molex 0196001308	4.75 mm	0.187 in	Standard	Yellow	Free Hanging (In-Line)	22 AWG	16 AWG	Wire Combination Range	0.032 in	0.81 mm	0.88 in	22.35 mm	Crimp	Tin	Brass	Female	Fully Insulated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	6000	$ 0.82

General part information

0.187" (4.75mm) Quick Connect Female 16-22 AWG, Wire Combination Range Crimp Connector Fully Insulated
