0196001300
ActiveMolex

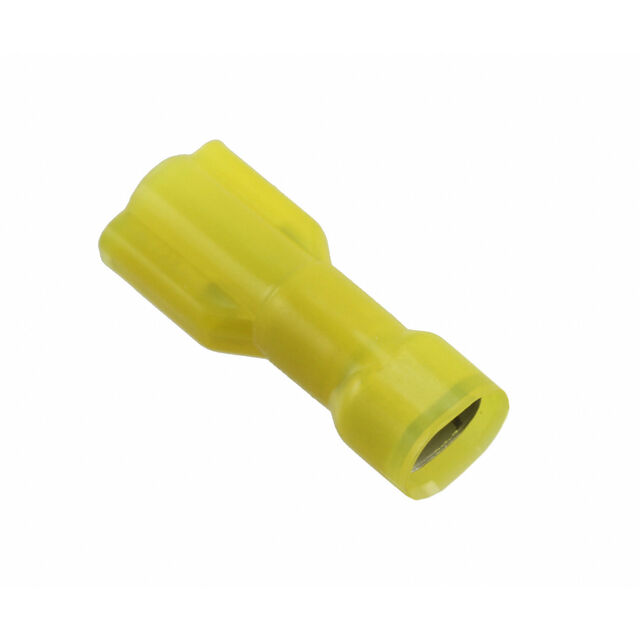

CONN QC RCPT 16-22AWG 0.250
Deep-Dive with AI
Search across all available documentation for this part.
0196001300
ActiveMolex
CONN QC RCPT 16-22AWG 0.250
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0196001300 |
|---|---|
| Color | Yellow |
| Contact Finish | Tin |
| Contact Material | Brass |
| Gender | Female |
| Insulation | Fully Insulated |
| Length - Overall [x] | 0.96 " |
| Length - Overall [x] | 24.38 mm |
| Mounting Type | Free Hanging (In-Line) |
| Tab Thickness | 0.032 in |
| Tab Thickness | 0.81 mm |
| Tab Width | 6.35 mm |
| Tab Width | 0.25 in |
| Terminal Type | Standard |
| Termination | Crimp |
| Wire Gauge | Wire Combination Range |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 16 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.55 | |
| 10 | $ 1.32 | |||
| 100 | $ 1.09 | |||
| 1000 | $ 1.01 | |||
Description
General part information
019600 Series
0.250" (6.35mm) Quick Connect Female 16-22 AWG, Wire Combination Range Crimp Connector Fully Insulated
