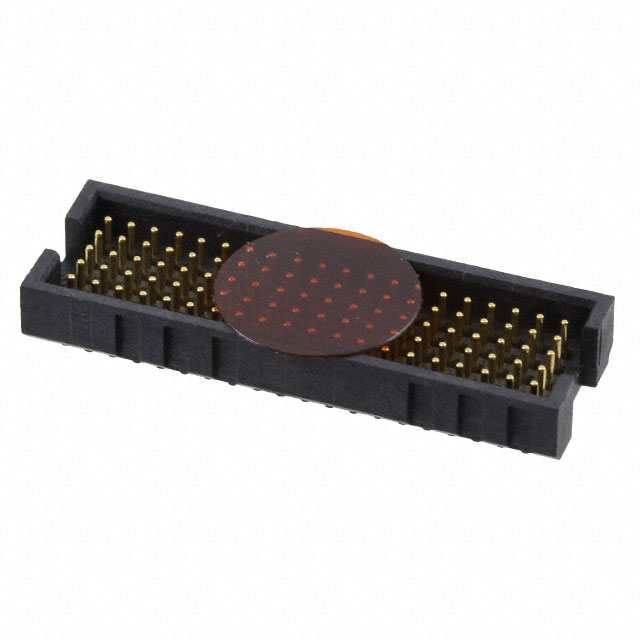

YFT-20-05-H-05-SB-K-TR - YFT-20-05-H-05-SB-K

YFT-20-05-H-05-SB-K-TR

Active
Samtec Inc.

MEZZANINE CONN, PLUG, 100POS, 5ROW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsYFS Series Other Related Documents 03.050" SamArray® Low Profile Open-Pin-Field Array Terminal+4
YFT-20-05-H-05-SB-K-TR - YFT-20-05-H-05-SB-K

YFT-20-05-H-05-SB-K-TR

Active
Samtec Inc.

MEZZANINE CONN, PLUG, 100POS, 5ROW

Deep-Dive with AI

DocumentsYFS Series Other Related Documents 03.050" SamArray® Low Profile Open-Pin-Field Array Terminal+4

Technical Specifications

Parameters and characteristics for this part

SpecificationYFT-20-05-H-05-SB-K-TR
Connector TypeMale Pins, Array
Contact FinishGold
Contact Finish Thickness0.76 Ám
Contact Finish Thickness30 Áin
FeaturesPick and Place
Height Above Board0.177 in
Height Above Board4.5 mm
Mated Stacking Heights5 mm
Mounting TypeSurface Mount
Number of Positions100
Number of Rows5
Pitch [x]0.05 in
Pitch [x]1.27 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 24.89
10$ 19.19
25$ 17.37
50$ 16.15
100$ 15.04
Digi-Reel® 1$ 21.00
10$ 18.20
25$ 17.25
50$ 17.00
100$ 15.00
Tape & Reel (TR) 350$ 13.29
700$ 12.45
NewarkEach (Supplied on Cut Tape) 1$ 18.47
5$ 17.56
10$ 16.65
25$ 16.02
50$ 14.66

Description

General part information

YFT-20 Series

100 Position Connector Array, Male Pins Surface Mount Gold
