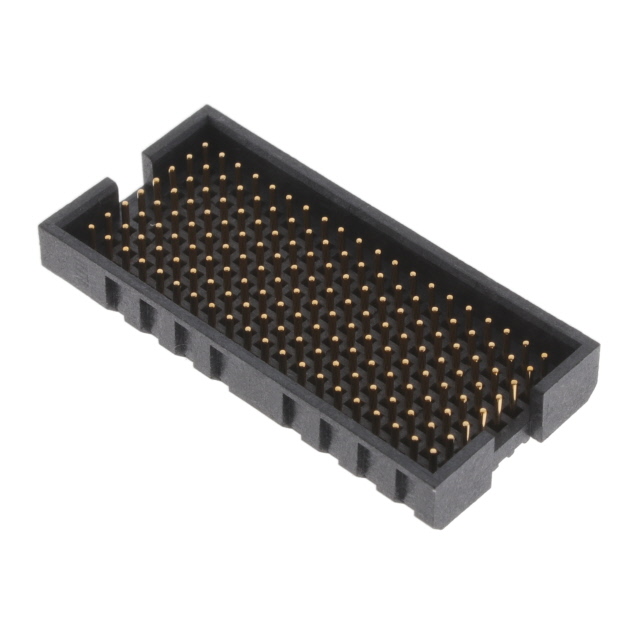

YFT-20-05-H-08-SB-K
ActiveSamtec Inc.
CONN ARRAY PLUG 160POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
YFT-20-05-H-08-SB-K
ActiveSamtec Inc.
CONN ARRAY PLUG 160POS SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | YFT-20-05-H-08-SB-K |
|---|---|
| Connector Type | Male Pins, Array |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Features | Pick and Place |
| Height Above Board | 0.177 in |
| Height Above Board | 4.5 mm |
| Mated Stacking Heights | 5 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 160 |
| Number of Rows | 8 |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 50 | $ 33.10 | |
Description
General part information
YFT-20 Series
160 Position Connector Array, Male Pins Surface Mount Gold
