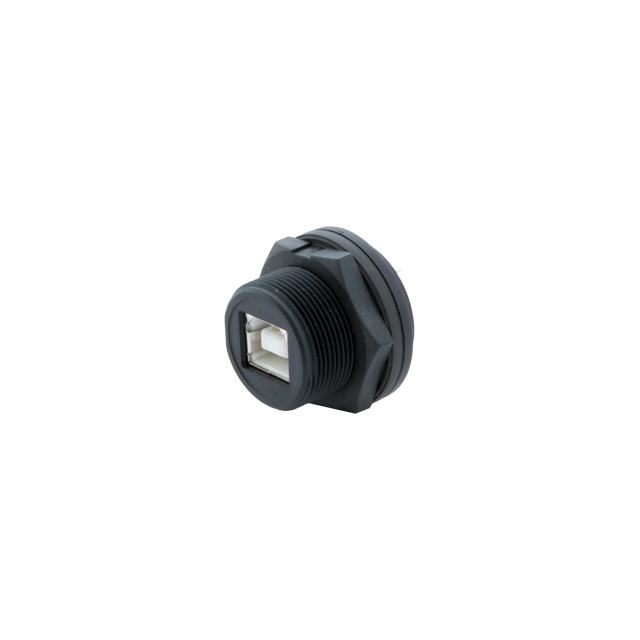

IPUSB-2JBPC

Active

Sure-Seal Legacy

JACK, PNL USB W 2.0 B/PC TAIL

Deep-Dive with AI

Search across all available documentation for this part.

IPUSB-2JBPC

Active

Sure-Seal Legacy

JACK, PNL USB W 2.0 B/PC TAIL

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IPUSB-2JBPC

Connector Type	USB-B
Contact Finish	Gold
Current Rating (Amps)	1.5 A
Features	Circular Threaded Coupling
Gender	Receptacle
Ingress Protection	IP67 - Dust Tight, Waterproof
Mating Cycles	1000
Mounting Feature	Bulkhead - Front Side Nut; Vertical
Mounting Type	Through Hole, Panel Mount
Number of Contacts [custom]	4
Number of Ports	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Shielding	Unshielded
Specifications	USB 2.0
Termination	Solder
Voltage - Rated	30 V

IPUSB Series

Part	Features	Specifications	Wire Gauge	Color	Transfer Rate	Length [x]	Length [x]	Configuration	Shielding	Convert To (Adapter End)	Mounting Type	Convert From (Adapter End)	Number of Contacts [custom]	Mounting Feature	Ingress Protection	Connector Type	Current Rating (Amps)	Voltage - Rated	Termination	Contact Finish	Number of Ports	Operating Temperature [Min]	Operating Temperature [Max]	Gender	Mating Cycles
Sure-Seal Legacy IPUSB-2WJBPA-05M	Data Transfer and Charge Industrial Environments - IP67 Panel Mount	USB 2.0	24 AWG 28 AWG	Black	480 Mbps	1.64 ft	500 mm	B Female to A Male (Circular Coupling)	Shielded
Sure-Seal Legacy IPUSB-2WPBPB-1M	Data Transfer and Charge Industrial Environments - IP67 Panel Mount	USB 2.0	24 AWG 28 AWG	Black	480 Mbps	3.28 ft	1 m	B Male to B Male (Circular Coupling)	Shielded
Sure-Seal Legacy IPUSB-2WPAWPB-2M	Data Transfer and Charge Industrial Environments - IP67 Panel Mount	USB 2.0	24 AWG 28 AWG	Black	480 Mbps	6.56 ft	2 m	A Male to B Male	Shielded
Sure-Seal Legacy IPUSB-2AABHD										Receptacle USB-A (USB TYPE-A)	Panel Mount Bulkhead - Front Side Nut	USB-A (USB TYPE-A) Receptacle
Sure-Seal Legacy IPUSB-2WJAPA-2M	Data Transfer and Charge Industrial Environments - IP67 Panel Mount	USB 2.0	24 AWG 28 AWG	Black	480 Mbps	6.56 ft	2 m	A Female to A Male (Circular Coupling)	Shielded
Sure-Seal Legacy IPUSB-2WJBPA-2M	Data Transfer and Charge Industrial Environments - IP67 Panel Mount	USB 2.0	24 AWG 28 AWG	Black	480 Mbps	6.56 ft	2 m	B Female to A Male (Circular Coupling)	Shielded
Sure-Seal Legacy IPUSB-2JBPC	Circular Threaded Coupling	USB 2.0							Unshielded		Panel Mount Through Hole		4	Bulkhead - Front Side Nut; Vertical	IP67 - Dust Tight Waterproof	USB-B	1.5 A	30 V	Solder	Gold	1	-20 C	80 C	Receptacle	1000
Sure-Seal Legacy IPUSB-2JBFL	Data Transfer and Charge Industrial Environments - IP67 Panel Mount	USB 2.0	20 AWG 28 AWG	Multiple	480 Mbps	1.64 ft	500 mm	A Female to Wire Leads (Circular Coupling)	Unshielded
Sure-Seal Legacy IPUSB-2WJAPA-1M	Data Transfer and Charge Industrial Environments - IP67 Panel Mount	USB 2.0	24 AWG 28 AWG	Black	480 Mbps	3.28 ft	1 m	A Female to A Male (Circular Coupling)	Shielded
Sure-Seal Legacy IPUSB-2WJBPA-1M	Data Transfer and Charge Industrial Environments - IP67 Panel Mount	USB 2.0	24 AWG 28 AWG	Black	480 Mbps	3.28 ft	1 m	B Female to A Male (Circular Coupling)	Shielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 4.28
	Bulk	1	$ 20.72
		10	$ 14.64
		25	$ 11.80
		50	$ 10.70
		100	$ 10.06
		250	$ 9.54
		500	$ 9.31
		1000	$ 9.08

Description

General part information

IPUSB Series

USB-B (USB TYPE-B) USB 2.0 Receptacle Connector 4 Position Panel Mount, Through Hole

Documents

Technical documentation and resources

No documents available
