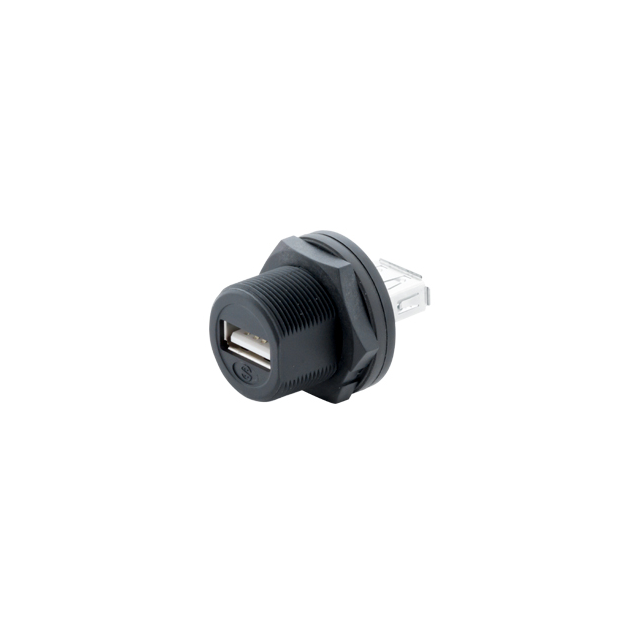

IPUSB-2AABHD

Active

Sure-Seal Legacy

JACK, PNL USB W 2.0 A / A BHD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

IPUSB-2AABHD

Active

Sure-Seal Legacy

JACK, PNL USB W 2.0 A / A BHD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IPUSB-2AABHD

Convert From (Adapter End)	USB-A (USB TYPE-A), Receptacle
Convert To (Adapter End)	USB-A (USB TYPE-A), Receptacle
Mounting Type	Panel Mount, Bulkhead - Front Side Nut

IPUSB Series

Part	Features	Specifications	Wire Gauge	Color	Transfer Rate	Length [x]	Length [x]	Configuration	Shielding	Convert To (Adapter End)	Mounting Type	Convert From (Adapter End)	Number of Contacts [custom]	Mounting Feature	Ingress Protection	Connector Type	Current Rating (Amps)	Voltage - Rated	Termination	Contact Finish	Number of Ports	Operating Temperature [Min]	Operating Temperature [Max]	Gender	Mating Cycles
Sure-Seal Legacy IPUSB-2WJBPA-05M	Data Transfer and Charge Industrial Environments - IP67 Panel Mount	USB 2.0	24 AWG 28 AWG	Black	480 Mbps	1.64 ft	500 mm	B Female to A Male (Circular Coupling)	Shielded
Sure-Seal Legacy IPUSB-2WPBPB-1M	Data Transfer and Charge Industrial Environments - IP67 Panel Mount	USB 2.0	24 AWG 28 AWG	Black	480 Mbps	3.28 ft	1 m	B Male to B Male (Circular Coupling)	Shielded
Sure-Seal Legacy IPUSB-2WPAWPB-2M	Data Transfer and Charge Industrial Environments - IP67 Panel Mount	USB 2.0	24 AWG 28 AWG	Black	480 Mbps	6.56 ft	2 m	A Male to B Male	Shielded
Sure-Seal Legacy IPUSB-2AABHD										Receptacle USB-A (USB TYPE-A)	Panel Mount Bulkhead - Front Side Nut	USB-A (USB TYPE-A) Receptacle
Sure-Seal Legacy IPUSB-2WJAPA-2M	Data Transfer and Charge Industrial Environments - IP67 Panel Mount	USB 2.0	24 AWG 28 AWG	Black	480 Mbps	6.56 ft	2 m	A Female to A Male (Circular Coupling)	Shielded
Sure-Seal Legacy IPUSB-2WJBPA-2M	Data Transfer and Charge Industrial Environments - IP67 Panel Mount	USB 2.0	24 AWG 28 AWG	Black	480 Mbps	6.56 ft	2 m	B Female to A Male (Circular Coupling)	Shielded
Sure-Seal Legacy IPUSB-2JBPC	Circular Threaded Coupling	USB 2.0							Unshielded		Panel Mount Through Hole		4	Bulkhead - Front Side Nut; Vertical	IP67 - Dust Tight Waterproof	USB-B	1.5 A	30 V	Solder	Gold	1	-20 C	80 C	Receptacle	1000
Sure-Seal Legacy IPUSB-2JBFL	Data Transfer and Charge Industrial Environments - IP67 Panel Mount	USB 2.0	20 AWG 28 AWG	Multiple	480 Mbps	1.64 ft	500 mm	A Female to Wire Leads (Circular Coupling)	Unshielded
Sure-Seal Legacy IPUSB-2WJAPA-1M	Data Transfer and Charge Industrial Environments - IP67 Panel Mount	USB 2.0	24 AWG 28 AWG	Black	480 Mbps	3.28 ft	1 m	A Female to A Male (Circular Coupling)	Shielded
Sure-Seal Legacy IPUSB-2WJBPA-1M	Data Transfer and Charge Industrial Environments - IP67 Panel Mount	USB 2.0	24 AWG 28 AWG	Black	480 Mbps	3.28 ft	1 m	B Female to A Male (Circular Coupling)	Shielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 4.91
		10	$ 14.51
		25	$ 11.40
		50	$ 9.98
		100	$ 8.87
	Bulk	1	$ 24.80
		10	$ 18.15
		25	$ 14.63
		50	$ 13.26
		100	$ 12.47
		250	$ 11.83
		500	$ 11.54

Description

General part information

IPUSB Series

Adapter Connector USB-A (USB TYPE-A), Receptacle To USB-A (USB TYPE-A), Receptacle Panel Mount, Bulkhead - Front Side Nut
