1.10.001.001/0301

Active

RAFI USA

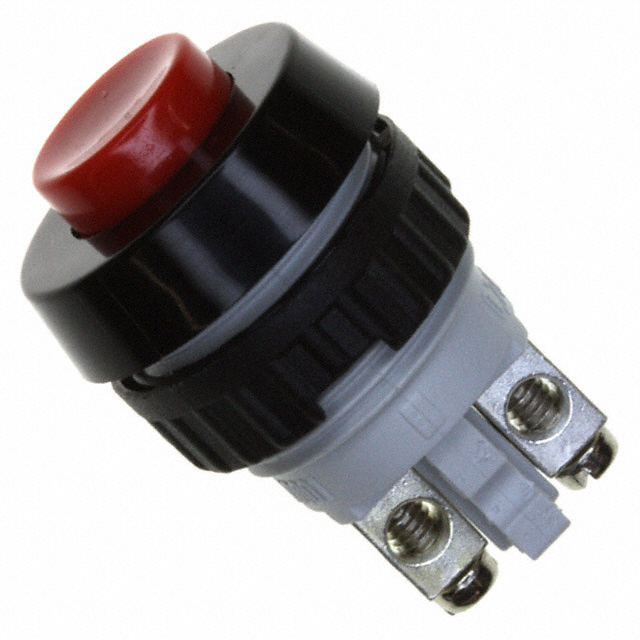

SWITCH, PUSHBUTTON, MOM, OPAQUE, RED

Search across all available documentation for this part.

Active

RAFI USA

SWITCH, PUSHBUTTON, MOM, OPAQUE, RED

Technical Specifications

Parameters and characteristics for this part

Specification	1.10.001.001/0301

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Red
Current Rating (Amps)	700 mA
Electrical Life	25000 Steps
Ingress Protection	IP40
Mechanical Life	25000 Steps
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-18.4 °F
Panel Cutout Dimensions [diameter]	15.2 mm
Switch Function	Off-Mom
Termination Style	Screw Terminal
Type	Standard
Voltage Rating - AC	250 V

Part	Electrical Life	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Marking	Type	Actuator Type	Mounting Type	Termination Style	Switch Function	Panel Cutout Dimensions [diameter]	Ingress Protection	Voltage Rating - AC	Color - Actuator/Cap	Mechanical Life	Current Rating (Amps)	Circuit
RAFI USA 1.10.001.001/0104	25000 Steps	-18.4 °F	85 °C	No Marking	Standard	Button Round	Panel Mount Front	Screw Terminal	Off-Mom	15.2 mm	IP40	250 V	Black	25000 Steps	700 mA	SPST-NO
RAFI USA 1.10.001.252/0301
RAFI USA 1.10.001.001/0301	25000 Steps	-18.4 °F	85 °C	No Marking	Standard	Button Round	Panel Mount Front	Screw Terminal	Off-Mom	15.2 mm	IP40	250 V	Red	25000 Steps	700 mA	SPST-NO
RAFI USA 1.10.001.151/0205

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard Panel Mount, Front
