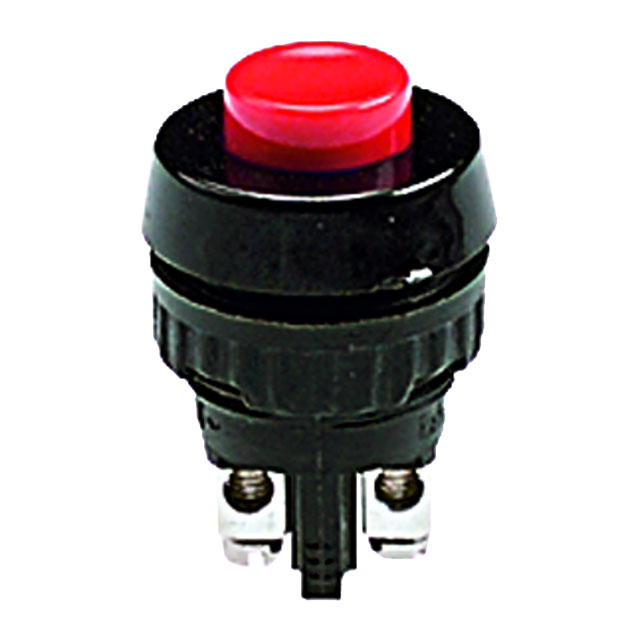

1.10.001.001/0104

Active

RAFI USA

SWITCH PUSH SPST-NO 0.7A 250V

Search across all available documentation for this part.

Active

RAFI USA

SWITCH PUSH SPST-NO 0.7A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	1.10.001.001/0104

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Black
Current Rating (Amps)	700 mA
Electrical Life	25000 Steps
Ingress Protection	IP40
Mechanical Life	25000 Steps
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-18.4 °F
Panel Cutout Dimensions [diameter]	15.2 mm
Switch Function	Off-Mom
Termination Style	Screw Terminal
Type	Standard
Voltage Rating - AC	250 V

Part	Electrical Life	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Marking	Type	Actuator Type	Mounting Type	Termination Style	Switch Function	Panel Cutout Dimensions [diameter]	Ingress Protection	Voltage Rating - AC	Color - Actuator/Cap	Mechanical Life	Current Rating (Amps)	Circuit
RAFI USA 1.10.001.001/0104	25000 Steps	-18.4 °F	85 °C	No Marking	Standard	Button Round	Panel Mount Front	Screw Terminal	Off-Mom	15.2 mm	IP40	250 V	Black	25000 Steps	700 mA	SPST-NO
RAFI USA 1.10.001.252/0301
RAFI USA 1.10.001.001/0301	25000 Steps	-18.4 °F	85 °C	No Marking	Standard	Button Round	Panel Mount Front	Screw Terminal	Off-Mom	15.2 mm	IP40	250 V	Red	25000 Steps	700 mA	SPST-NO
RAFI USA 1.10.001.151/0205

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard Panel Mount, Front
