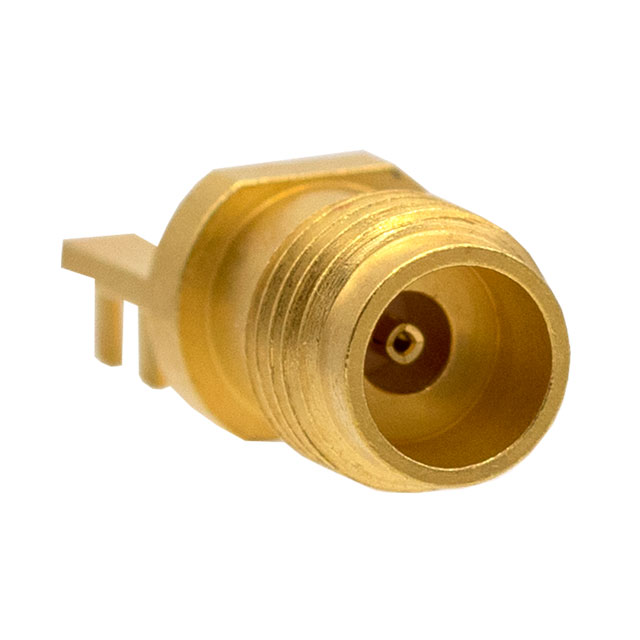

147-0701-251
ActiveCinch Connectivity Solutions Johnson
2.4MM END LAUNCH PC MOUNT JACK,
Deep-Dive with AI
Search across all available documentation for this part.
147-0701-251
ActiveCinch Connectivity Solutions Johnson
2.4MM END LAUNCH PC MOUNT JACK,
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 147-0701-251 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | OS-50 |
| Connector Style | 2.4 mm |
| Connector Style | APC-2.4 |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 50 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Board Edge, Right Angle, Through Hole, End Launch |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Solder |
| Voltage Rating | 150 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 26.63 | |
| 10 | $ 23.32 | |||
| 25 | $ 22.31 | |||
| 50 | $ 21.59 | |||
| 100 | $ 20.87 | |||
| 250 | $ 19.72 | |||
| 500 | $ 19.14 | |||
Description
General part information
147-0701 Series
2.4mm (APC-2.4, OS-50) Connector Jack, Female Socket 50 Ohms Board Edge, End Launch; Through Hole, Right Angle Solder
