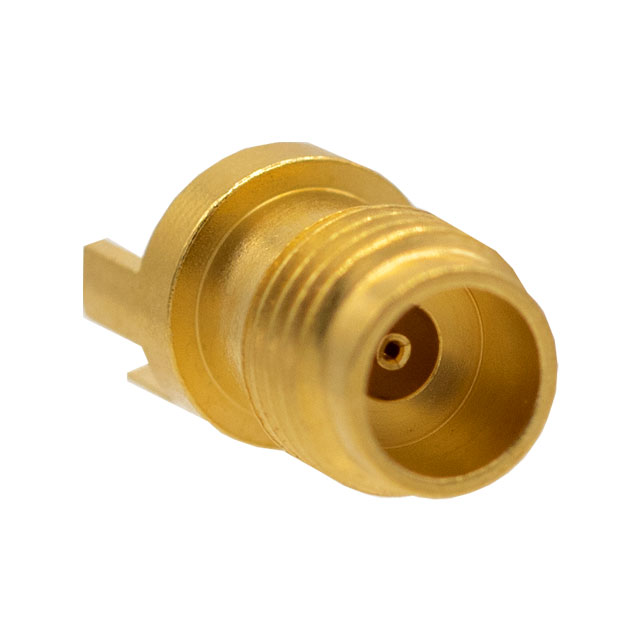

2.4MM END LAUNCH JACK FOR .062"

Deep-Dive with AI

Search across all available documentation for this part.

147-0701-241

Active

Cinch Connectivity Solutions Johnson

2.4MM END LAUNCH JACK FOR .062"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	147-0701-241

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	OS-50
Connector Style	2.4 mm
Connector Style	APC-2.4
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	50 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Board Edge, End Launch
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	150 VDC

147-0701 Series

Part	Frequency - Max [Max]	Contact Termination	Body Material	Dielectric Material	Housing Color	Impedance	Body Finish	Connector Style	Connector Style	Connector Style	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Mating Cycles	Number of Ports	Center Contact Plating	Connector Type	Shield Termination	Mounting Type	Center Contact Material	Mounting Feature	Features
Cinch Connectivity Solutions Johnson 147-0701-261	50 GHz	Solder	Brass	Polytetrafluoroethylene (PTFE)	Gold	50 Ohms	Gold	OS-50	2.4 mm	APC-2.4	150 VDC	85 °C	-40 °C	500	1	Gold	Female Socket Jack	Solder	Board Edge End Launch	Beryllium Copper
Cinch Connectivity Solutions Johnson 147-0701-222	50 GHz	Solder	Stainless Steel	Polytetrafluoroethylene (PTFE)	Silver	50 Ohms		OS-50	2.4 mm	APC-2.4		165 °C	-65 ░C	500	1	Gold	Female Socket Jack	Screw	Surface Mount	Beryllium Copper	Flange	Mounting Hardware
Cinch Connectivity Solutions Johnson 147-0701-832	50 GHz	Solder	Stainless Steel	Polytetrafluoroethylene (PTFE)	Silver	50 Ohms		OS-50	2.4 mm	APC-2.4		125 °C	-55 °C	500	1	Gold	Female Socket Jack	Screw	Board Edge End Launch	Beryllium Copper		Mounting Hardware
Cinch Connectivity Solutions Johnson 147-0701-251	50 GHz	Solder	Brass	Polytetrafluoroethylene (PTFE)	Gold	50 Ohms	Gold	OS-50	2.4 mm	APC-2.4	150 VDC	85 °C	-40 °C	500	1	Gold	Female Socket Jack	Solder	Board Edge End Launch Right Angle Through Hole	Beryllium Copper
Cinch Connectivity Solutions Johnson 147-0701-271	50 GHz	Solder	Brass	Polytetrafluoroethylene (PTFE)	Gold	50 Ohms	Gold	OS-50	2.4 mm	APC-2.4	150 VDC	85 °C	-40 °C	500	1	Gold	Female Socket Jack	Solder	Board Edge End Launch	Beryllium Copper
Cinch Connectivity Solutions Johnson 147-0701-822	50 GHz	Solder	Stainless Steel	Polytetrafluoroethylene (PTFE)	Silver	50 Ohms		OS-50	2.4 mm	APC-2.4		125 °C	-55 °C	500	1	Gold	Female Socket Jack	Screw	Board Edge End Launch	Beryllium Copper		Mounting Hardware
Cinch Connectivity Solutions Johnson 147-0701-241	50 GHz	Solder	Brass	Polytetrafluoroethylene (PTFE)	Gold	50 Ohms	Gold	OS-50	2.4 mm	APC-2.4	150 VDC	85 °C	-40 °C	500	1	Gold	Female Socket Jack	Solder	Board Edge End Launch	Beryllium Copper

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 28.03
		10	$ 24.54
		25	$ 23.48
		50	$ 22.73
		100	$ 21.97
		250	$ 20.76

Description

General part information

147-0701 Series

2.4mm (APC-2.4, OS-50) Connector Jack, Female Socket 50 Ohms Board Edge, End Launch Solder
