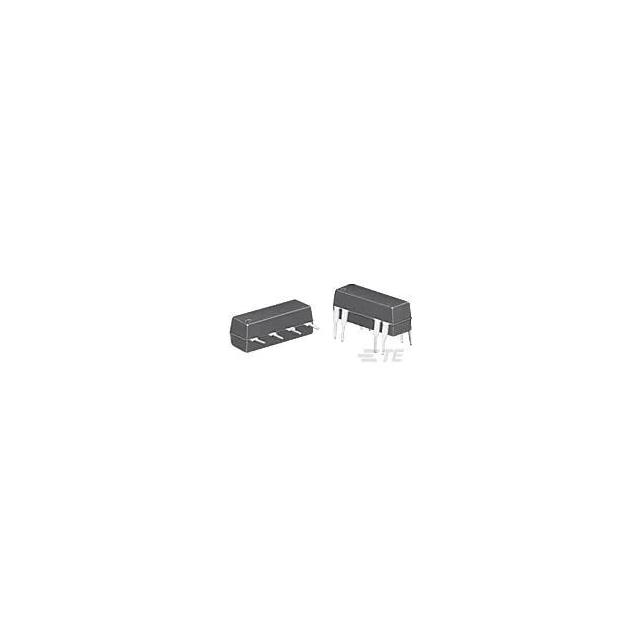

1-1393771-5
ActiveTE Connectivity Potter & Brumfield Relays
JWD-171-23=REED RELAYS
Deep-Dive with AI
Search across all available documentation for this part.
1-1393771-5
ActiveTE Connectivity Potter & Brumfield Relays
JWD-171-23=REED RELAYS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1393771-5 |
|---|---|
| Coil Current | 24 mA |
| Coil Resistance | 500 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | DPST-NO (2 Form A) |
| Contact Material | Ruthenium (Ru) |
| Contact Rating (Current) | 0.5 A |
| Mounting Type | Through Hole |
| Must Operate Voltage | 9.6 VDC |
| Must Release Voltage | 1 VDC |
| Operate Time | 1.5 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -35 °C |
| Release Time | 0.5 ms |
| Switching Voltage [Max] | 100 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
1393771 Series
JWD-171-23=REED RELAYS
