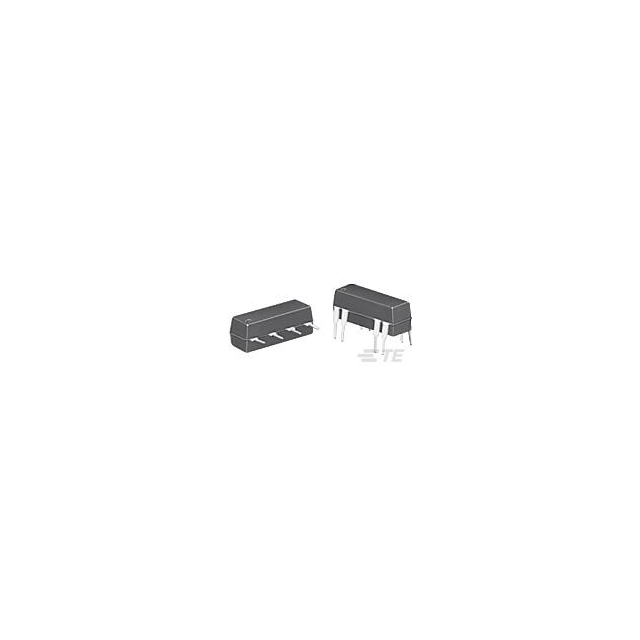

2-1393771-0

Active

TE Connectivity Potter & Brumfield Relays

RELAY

Search across all available documentation for this part.

Active

TE Connectivity Potter & Brumfield Relays

RELAY

Technical Specifications

Parameters and characteristics for this part

Specification	2-1393771-0

null

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Must Operate Voltage	Coil Current	Coil Voltage	Operate Time	Contact Rating (Current)	Switching Voltage [Max]	Coil Resistance	Termination Style	Mounting Type	Contact Form	Release Time	Coil Type	Must Release Voltage
TE Connectivity Potter & Brumfield Relays 1-1393771-5	-35 °C	85 °C	Ruthenium (Ru)	9.6 VDC	24 mA	12 VDC	1.5 ms	0.5 A	100 VDC	500 Ohms	PC Pin	Through Hole	DPST-NO (2 Form A)	0.5 ms	Non Latching	1 VDC
TE Connectivity Potter & Brumfield Relays 2-1393771-0
TE Connectivity Potter & Brumfield Relays 1393771-8	-35 °C	85 °C	Ruthenium (Ru)	3.8 VDC	10 mA	5 VDC	1.5 ms	0.5 A	100 VDC	500 Ohms	PC Pin	Through Hole	SPST-NC (1 Form B)	0.5 ms	Non Latching	0.5 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Relay
