132000285

Active

Amphenol Procom

4X4 MIMO 4G/5G 617-960 MHZ 1710-

Search across all available documentation for this part.

Active

Amphenol Procom

4X4 MIMO 4G/5G 617-960 MHZ 1710-

Technical Specifications

Parameters and characteristics for this part

Specification	132000285

Antenna Type	Module
Applications	2G, 4G, Galileo, GLONASS, GPS, LTE, 3G, 5G, GNSS, Beidou
Features	LNA
Frequency (Center/Band)	788.5 MHz, 1.584 GHz, 2.437 GHz, 2.755 GHz, 6.05 GHz
Frequency Group	Wide Band
Frequency Range [Max]	2.485 GHz, 7.2 GHz, 960 MHz, 3.8 GHz, 1.609 GHz
Frequency Range [Min]	4.9 GHz, 1.559 GHz, 617 MHz, 1.71 GHz, 2.39 GHz
Gain	3 dBi, 7 dBi
Height (Max) [Max]	69 mm
Height (Max) [Max]	2.717 in
Ingress Protection	IP69K
Mounting Type	Surface Mount
Number of Bands [custom]	5
Power - Max [Max]	25 W
RF Family/Standard	Cellular, Navigation
VSWR	2, 2.5

Part	For Use With/Related Products	Accessory Type	RF Family/Standard	Antenna Type	Height (Max) [Max]	Height (Max) [Max]	Power - Max [Max]	Applications	Frequency Range [Max]	Frequency Range [Min]	Gain	VSWR	Frequency Group	Ingress Protection	Number of Bands	Frequency (Center/Band)	Number of Bands [custom]	Features	Mounting Type
Amphenol Procom 132000270	130002476 132000269	Cable
Amphenol Procom 132000269			Cellular	Module	2.587 in	65.7 mm	100 W	2G 3G 4G 5G GNSS GPS LTE	1.609 GHz 2.5 GHz 3.8 GHz 6 GHz 960 MHz	1.559 GHz 1.71 GHz 2.4 GHz 5 GHz 617 MHz	4 dBi 6 dB 7 dBi	2 2.2	Wide Band	IP67	6	1.575 GHz 1.584 GHz 2.45 GHz 2.755 GHz 5.5 GHz 788.5 MHz
Amphenol Procom 132000285			Cellular Navigation	Module	2.717 in	69 mm	25 W	2G 3G 4G 5G Beidou Galileo GLONASS GNSS GPS LTE	1.609 GHz 2.485 GHz 3.8 GHz 7.2 GHz 960 MHz	1.559 GHz 1.71 GHz 2.39 GHz 4.9 GHz 617 MHz	3 dBi 7 dBi	2 2.5	Wide Band	IP69K		1.584 GHz 2.437 GHz 2.755 GHz 6.05 GHz 788.5 MHz	5	LNA	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 335.19

General part information

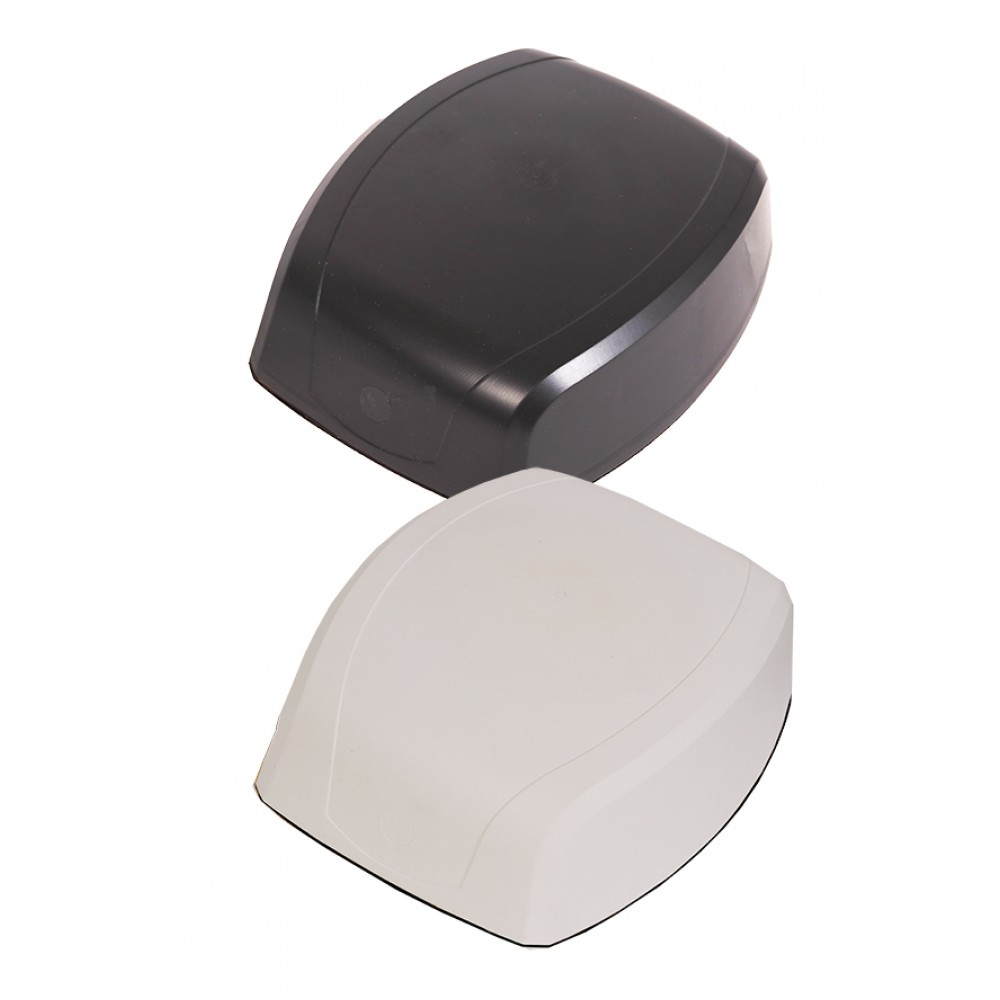

RF ANTENNA 2G, 3G, 4G, 5G, BeiDou, Galileo, GLONASS, GNSS, GPS, LTE Module SMA Male Surface Mount
