132000269

Active

Amphenol Procom

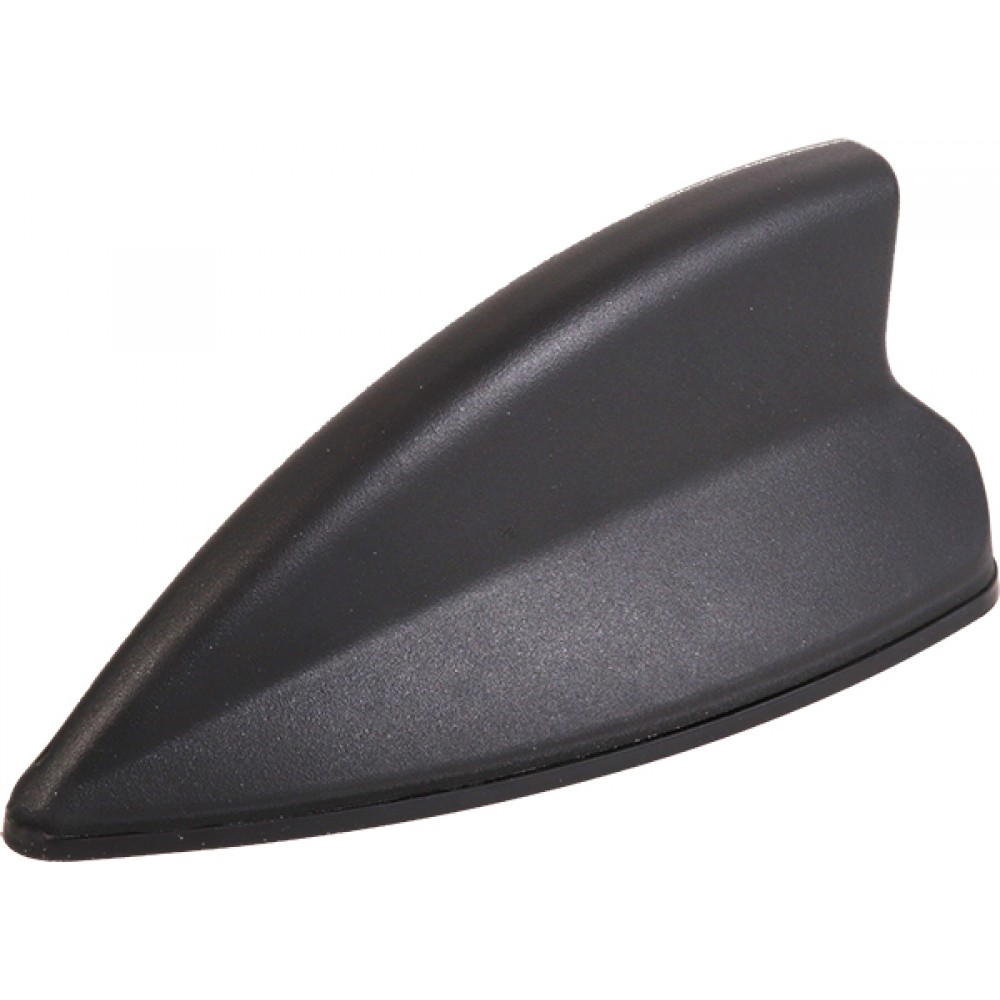

MULTI PURPOSE SHARK FIN 2X2 MIMO

Search across all available documentation for this part.

Active

Amphenol Procom

MULTI PURPOSE SHARK FIN 2X2 MIMO

Technical Specifications

Parameters and characteristics for this part

Part	For Use With/Related Products	Accessory Type	RF Family/Standard	Antenna Type	Height (Max) [Max]	Height (Max) [Max]	Power - Max [Max]	Applications	Frequency Range [Max]	Frequency Range [Min]	Gain	VSWR	Frequency Group	Ingress Protection	Number of Bands	Frequency (Center/Band)	Number of Bands [custom]	Features	Mounting Type
Amphenol Procom 132000270	130002476 132000269	Cable
Amphenol Procom 132000269			Cellular	Module	2.587 in	65.7 mm	100 W	2G 3G 4G 5G GNSS GPS LTE	1.609 GHz 2.5 GHz 3.8 GHz 6 GHz 960 MHz	1.559 GHz 1.71 GHz 2.4 GHz 5 GHz 617 MHz	4 dBi 6 dB 7 dBi	2 2.2	Wide Band	IP67	6	1.575 GHz 1.584 GHz 2.45 GHz 2.755 GHz 5.5 GHz 788.5 MHz
Amphenol Procom 132000285			Cellular Navigation	Module	2.717 in	69 mm	25 W	2G 3G 4G 5G Beidou Galileo GLONASS GNSS GPS LTE	1.609 GHz 2.485 GHz 3.8 GHz 7.2 GHz 960 MHz	1.559 GHz 1.71 GHz 2.39 GHz 4.9 GHz 617 MHz	3 dBi 7 dBi	2 2.5	Wide Band	IP69K		1.584 GHz 2.437 GHz 2.755 GHz 6.05 GHz 788.5 MHz	5	LNA	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA 2G, 3G, 4G, 5G, GNSS, GPS, LTE Module SMA Male Roof Mount

Technical documentation and resources

No documents available
