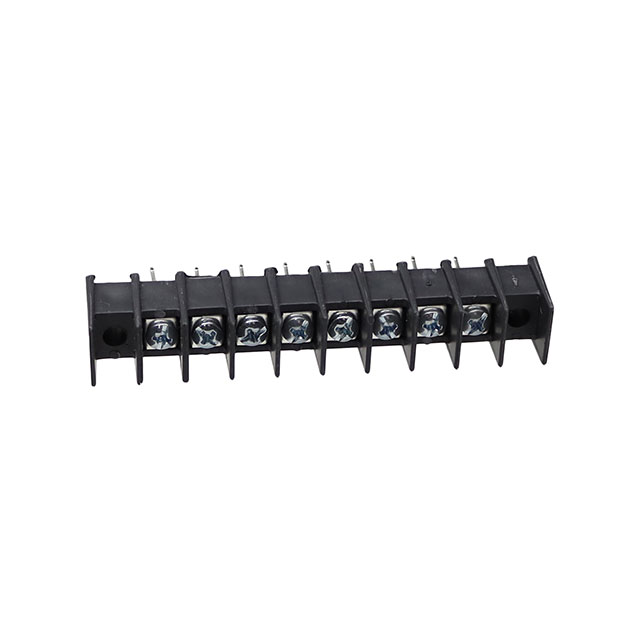

T38020-08-0

Active

Curtis Industries

CONN BARRIER STRIP 8CIRC 0.375"

Deep-Dive with AI

Search across all available documentation for this part.

T38020-08-0

Active

Curtis Industries

CONN BARRIER STRIP 8CIRC 0.375"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T38020-08-0

Barrier Type	2 Wall (Dual)
Bottom Termination	Solder Turret
Current Rating (Amps)	20 A
Features	Flange
Material - Insulation	Polypropylene (PP)
Material Flammability Rating	UL94 V-0
Mounting Type	Panel, Chassis
Number of Circuits [custom]	8
Number of Rows	1
Number of Wire Entries	8
Operating Temperature	105 C
Pitch [x]	9.53 mm
Pitch [x]	0.375 in
Terminal Block Type	Barrier Block
Terminal Screw Finish	Nickel
Terminal Screw Material	Steel
Top Termination	Screws
Voltage Rating	300 VDC
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	12 AWG

T38020 Series

Part	Material Flammability Rating	Terminal Block Type	Wire Gauge [Min]	Wire Gauge [Max]	Material - Insulation	Terminal Screw Finish	Current Rating (Amps)	Bottom Termination	Top Termination	Features	Number of Wire Entries	Number of Circuits	Pitch [x]	Pitch [x]	Mounting Type	Number of Rows	Terminal Screw Material	Operating Temperature	Barrier Type	Voltage Rating	Number of Wire Entries [custom]	Number of Circuits [custom]
Curtis Industries T38020-13-0	UL94 V-0	Barrier Block	12 AWG	22 AWG	Polypropylene (PP)	Nickel	20 A	Solder Turret	Screws	Flange	13	13	9.53 mm	0.375 in	Chassis Panel	1	Steel	105 C	2 Wall (Dual)	300 VDC
Curtis Industries T38020-23-0	UL94 V-0	Barrier Block	12 AWG	22 AWG	Polypropylene (PP)	Nickel	20 A	Solder Turret	Screws	Flange		23	9.53 mm	0.375 in	Chassis Panel	1	Steel	105 C	2 Wall (Dual)	300 VDC	23
Curtis Industries T38020-01-0	UL94 V-0	Barrier Block	12 AWG	22 AWG	Polypropylene (PP)	Nickel	20 A	Solder Turret	Screws	Flange		1			Chassis Panel	1	Steel	105 C	2 Wall (Dual)	300 VDC	1
Curtis Industries T38020-19-0	UL94 V-0	Barrier Block	12 AWG	22 AWG	Polypropylene (PP)	Nickel	20 A	Solder Turret	Screws	Flange	19	19	9.53 mm	0.375 in	Chassis Panel	1	Steel	105 C	2 Wall (Dual)	300 VDC
Curtis Industries T38020-09-0	UL94 V-0	Barrier Block	12 AWG	22 AWG	Polypropylene (PP)	Nickel	20 A	Solder Turret	Screws	Flange	9		9.53 mm	0.375 in	Chassis Panel	1	Steel	105 C	2 Wall (Dual)	300 VDC
Curtis Industries T38020-21-0	UL94 V-0	Barrier Block	12 AWG	22 AWG	Polypropylene (PP)	Nickel	20 A	Solder Turret	Screws	Flange	21	21	9.53 mm	0.375 in	Chassis Panel	1	Steel	105 C	2 Wall (Dual)	300 VDC
Curtis Industries T38020-08-0	UL94 V-0	Barrier Block	12 AWG	22 AWG	Polypropylene (PP)	Nickel	20 A	Solder Turret	Screws	Flange	8		9.53 mm	0.375 in	Chassis Panel	1	Steel	105 C	2 Wall (Dual)	300 VDC		8
Curtis Industries T38020-12-0	UL94 V-0	Barrier Block	12 AWG	22 AWG	Polypropylene (PP)	Nickel	20 A	Solder Turret	Screws	Flange	12	12	9.53 mm	0.375 in	Chassis Panel	1	Steel	105 C	2 Wall (Dual)	300 VDC
Curtis Industries T38020-11-0	UL94 V-0	Barrier Block	12 AWG	22 AWG	Polypropylene (PP)	Nickel	20 A	Solder Turret	Screws	Flange	11	11	9.53 mm	0.375 in	Chassis Panel	1	Steel	105 C	2 Wall (Dual)	300 VDC
Curtis Industries T38020-26-0	UL94 V-0	Barrier Block	12 AWG	22 AWG	Polypropylene (PP)	Nickel	20 A	Solder Turret	Screws	Flange	26	26	9.53 mm	0.375 in	Chassis Panel	1	Steel	105 C	2 Wall (Dual)	300 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 5.30
		50	$ 4.81
		125	$ 4.62
		250	$ 4.08
		625	$ 3.80
		1250	$ 3.53
		2500	$ 3.40

Description

General part information

T38020 Series

8 Circuit 0.375" (9.53mm) Barrier Block Connector Screws

Documents

Technical documentation and resources

No documents available
